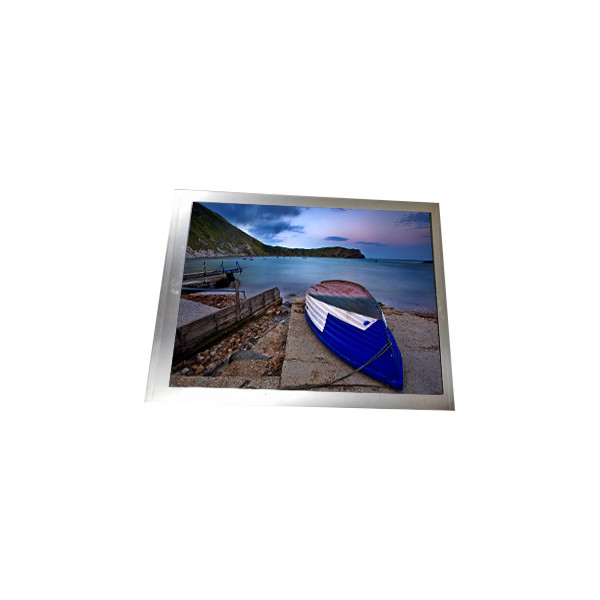

LA123WF7-SL04 12.3 inch 1920*720 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA123WF7-SL04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA123WF7-SL04 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×720 167PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 292.032(W)×109.512(H) Mm |
| Outline Dim.: | 299.53(W)×123.26(H)×9.34(D) | Treatment: | Glare (Haze 0%), Hard Coating (3H), Reflection 5.5% |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Application: | Industrial ，Rugged Industry， Automotive Display |
Product Description
LA123WF7-SL04 12.3 inch 1920*720 LCD Screen Display Panel
LA123WF7-SL04 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA123WF7-SL04 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | - |
| Outline Dim. | 299.53(W)×123.26(H)×9.34(D) |
| Treatment | Glare (Haze 0%), Hard coating (3H), Reflection 5.5% |
| Luminance | 1000 (Typ.)(cd/m²) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Max.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | 8S4P WLED , 10K hours , No Driver |
| Weight | TBD |
| Designed For | Industrial ,Rugged Industry, Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch, I²C |
| Interface Type | LVDS (2 ch, 8-bit) , 60 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
LA123WF7-SL04 LCD Panel Specification :
Quality Assurance:
Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.
LA123WF7-SL04 LCD Panel Shipping and Package :
LA123WF7-SL04 LCD Panel Shipping Information :
Standard Shipping Practices:
We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.
Processing Time:
We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.
Contact Information Requirement:
To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.
Attention – Expedited Shipping Options:
For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.
LA123WF7-SL04 LCD Panel Return Policy :
Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.
In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.
Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.
LA123WF7-SL04 LCD Panel FAQ :
Q: How can I trace my order of LA123WF7-SL04 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LA123WF7-SL04 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LA123WF7-SL04 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LA123WF7-SL04 ?
A: Of course!If you make a large order, we will give you a discount.
Want to Know more details about this product
