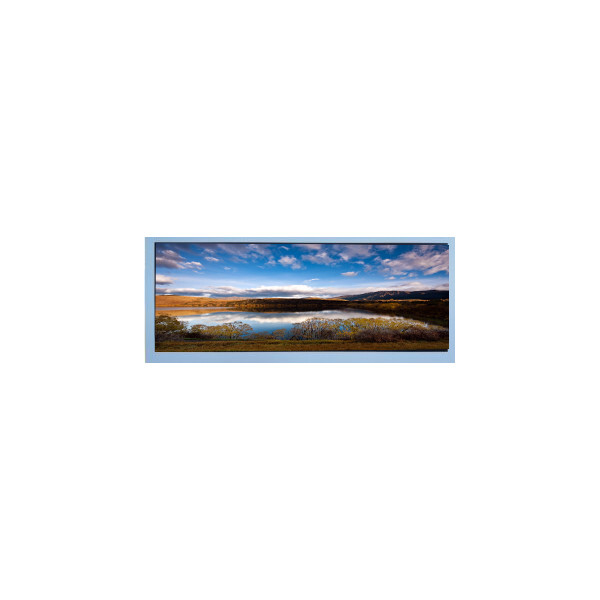

M102AWF2 R2 10.3 inch 1920*720 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M102AWF2 R2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M102AWF2 R2 | Diagonal Size: | 10.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×720 200PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 243.65(W)×91.37(H) Mm |
| Outline(mm): | 262.04 × 110.3× 16 (H×V×D) | Treatment: | Antiglare, Hard Coating (3H), Reflection 5.5% (Typ.) |
| Backlight: | 8S3PWLED, 10K Hours, No Driver | Application: | Automotive Display |
Product Description
M102AWF2 R2 10.3 inch 1920*720 LCD Screen Display Panel
M102AWF2 R2 LCD Panel Product details :
| Brand | IVO |
| Model P/N | M102AWF2 R2 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.65(W)×91.37(H) mm |
| Bezel Opening | 245.65(W)×93.66(H) mm |
| Outline(mm) | 262.04 × 110.3× 16 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H), Reflection 5.5% (Typ.) |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 75%NTSC |
| Backlight | 8S3PWLED, 10K hours, No Driver |
| Mass | 380g (Max.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 50 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
M102AWF2 R2 LCD Panel Specification :
Quality Assurance:
Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.
M102AWF2 R2 LCD Panel Shipping and Package :
M102AWF2 R2 LCD Panel Shipping Information :
Standard Shipping Practices:
We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.
Processing Time:
We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.
Contact Information Requirement:
To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.
Attention – Expedited Shipping Options:
For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.
M102AWF2 R2 LCD Panel Return Policy :
Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.
In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.
Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.
M102AWF2 R2 LCD Panel FAQ :
Q: How to make payment of M102AWF2 R2 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of M102AWF2 R2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of M102AWF2 R2 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods M102AWF2 R2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
