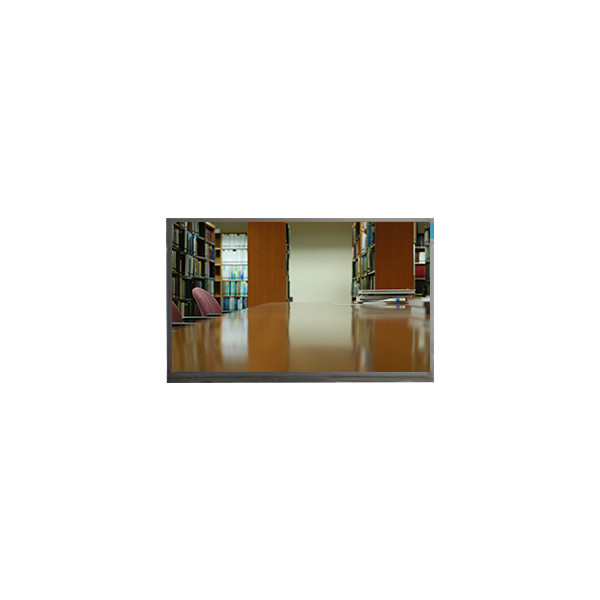

ZE104IA-03D 10.4 inch 1024*768 LCD Screen Display Panel

All Category

Floor Standing Digital Signage

ZE104IA-03D 10.4 inch 1024*768 LCD Screen Display Panel

Brand Name:	Innolux
Model Number:	ZE104IA-03D
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ZE104IA-03D

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1024(RGB)×768, XGA 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

210.4(W)×157.8(H) Mm

Outline(mm):

220.53(W)×168.02(H)×1.04(D)

Luminance:

0 (cd/m²)

Viewing Angle:

80/80/80/80 (Min.)(CR≥10)

Application:

Digital Photo Frame、Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Product Description

ZE104IA-03D 10.4 inch 1024*768 LCD Screen Display Panel

ZE104IA-03D LCD Panel Product details :

Brand	Innolux
Model P/N	ZE104IA-03D
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1024(RGB)×768, XGA 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	210.4(W)×157.8(H) mm
Bezel Opening	-
Outline(mm)	220.53(W)×168.02(H)×1.04(D)
Luminance	0 (cd/m²)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Good View at	Symmetry
Glass Thickness	0.40+0.40 mm
Color Depth	262K/16.7M 60% NTSC
Mass	100g (Typ.)
Refresh Rate	60Hz
Treatment	Antiglare
Contrast Ratio	1000 : 1 (Typ.) (TM)
Work Mode	AAS, Normally Black, Transmissive
Response	25 (Typ.)(Tr+Tf) ms
Transmissivity	5.64% (Typ.)
Backlight	No B/L, With LED Driver
Used for	Digital Photo Frame,Portable DVD Player
Touchscreen	Without
Driver IC list	Built-inCOG2 source + 1 gate chips
Signal Type	LVDS (1 ch, 8-bit), 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C

ZE104IA-03D LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

ZE104IA-03D LCD Panel Shipping and Package :

ZE104IA-03D LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

ZE104IA-03D LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

ZE104IA-03D LCD Panel FAQ :

Q: How to order ZE104IA-03D ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will ship my order of ZE104IA-03D ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test lcd panel ZE104IA-03D before shipping ?

A: Don't Worry , Our lcd ZE104IA-03D was tested ok before shipping

Q: Can you declared low value for my order lcd pane ZE104IA-03D ?

A: Yes we can , but you need to leave message to us before shipping .
