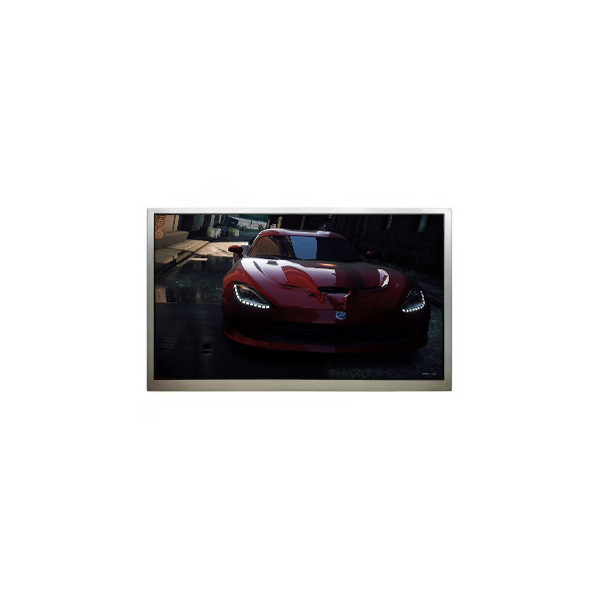

HSD101BWW5-A00 10.1 inch 800*1280 LCD Screen Display Panel

Brand Name:	HannStar
Model Number:	HSD101BWW5-A00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD101BWW5-A00

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

800(RGB)×1280, WXGA 150PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

135.36(W)×216.576(H) Mm

Outline Dim.:

145.1(H)×223.76(V)×0.8(D) Mm

Luminance:

0 Cd/m²

Contrast Ratio:

1000:1 (Typ.) (TM)

Application:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD101BWW5-A00 10.1 inch 800*1280 LCD Screen Display Panel

HSD101BWW5-A00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD101BWW5-A00
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	800(RGB)×1280, WXGA 150PPI
Pixel Format	RGB Vertical Stripe
Active Area	135.36(W)×216.576(H) mm
Bezel Opening	-
Outline Dim.	145.1(H)×223.76(V)×0.8(D) mm
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	IPS Pro, Normally Black, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	5.5% (Typ.)(with Polarizer)
Support Color	16.7M 50%NTSC
Light Source	No B/L
Weight	-
Designed For	Pad & Tablet
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest EK79202B1
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C

HSD101BWW5-A00 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

HSD101BWW5-A00 LCD Panel Shipping and Package :

HSD101BWW5-A00 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

HSD101BWW5-A00 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

HSD101BWW5-A00 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: If I place order now,when will you ship the goods of HSD101BWW5-A00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of HSD101BWW5-A00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods HSD101BWW5-A00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
