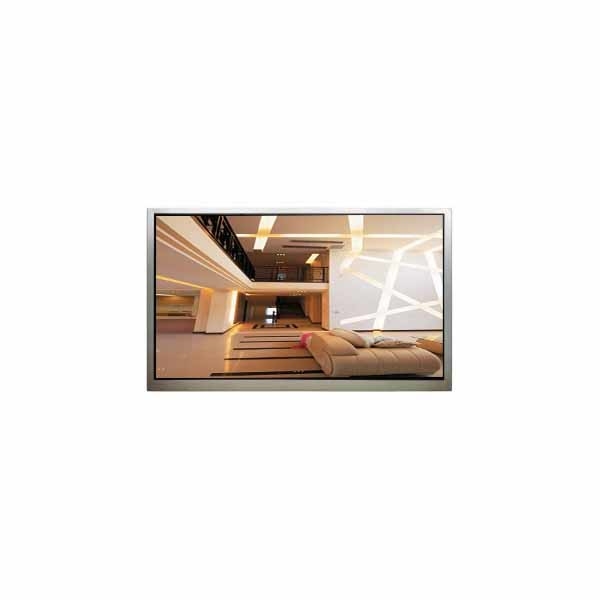

HSD104JXN1-A21 10.4 inch LVDS LCD Screen Display Panel

Brand Name:	HannStar
Model Number:	HSD104JXN1-A21
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD104JXN1-A21

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.48(H) Mm

Bezel Opening:

213.2(W)×160.4(H) Mm

Outline Size:

225.8(W)×174.3(H) Mm

Display Mode:

IPS Pro, Normally Black, Transmissive

Application:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD104JXN1-A21 10.4 inch LVDS LCD Screen Display Panel

HSD104JXN1-A21 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD104JXN1-A21
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.48(H) mm
Bezel Opening	213.2(W)×160.4(H) mm
Outline Size	225.8(W)×174.3(H) mm
Surface	Antiglare, Hard coating (3H)
Brightness	600 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS Pro, Normally Black, Transmissive
Best View on	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Display Colors	262K/16.2M 72%NTSC
Lamp Type	8S4PWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	375g (Typ.)
Application	Automotive Display
Signal Interface	LVDS (1 ch, 6/8-bit), 60 pinsFPC
Input Voltage	3.3/12.1/25/-10V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)

HSD104JXN1-A21 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

HSD104JXN1-A21 LCD Panel Shipping and Package :

HSD104JXN1-A21 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

HSD104JXN1-A21 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

HSD104JXN1-A21 LCD Panel FAQ :

Q: How to order HSD104JXN1-A21 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will ship my order HSD104JXN1-A21 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: What happen if HSD104JXN1-A21 I received can't work ?

A: HSD104JXN1-A21 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How long the warranty of TFT-LCD HSD104JXN1-A21 ?

A: 90 DAYS.
