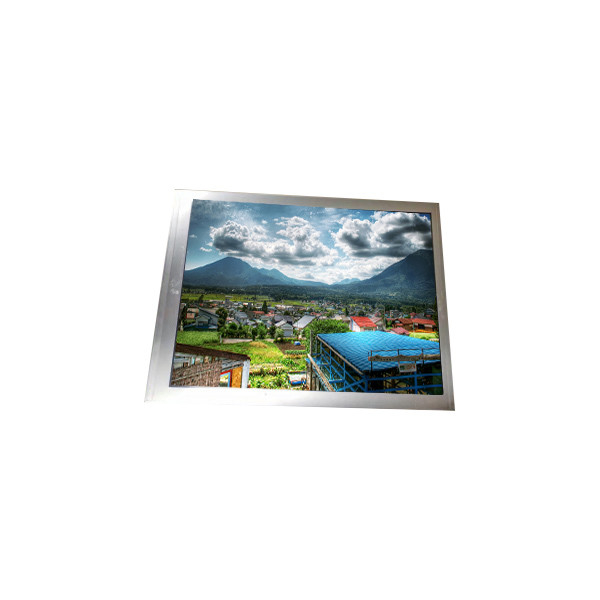

AT062WVM-N10 6.2 inch 800*480 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | AT062WVM-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AT062WVM-N10 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 150PPI |
| Contrast Ratio: | 900:1 (Typ.) (TM) | Active Area: | 75/75/70/70 (Typ.)(CR≥10) |
| Display Mode: | TN, Normally White, Transmissive | Response Time: | 20 (Max.)(Tr+Td) |
| Application: | Outdoor High Brightness， Automotive Display | Input Voltage: | 3.3/12/16.5/-9V (Typ.)(DVDD/AVDD/VGH/VGL) |
Product Description
AT062WVM-N10 6.2 inch 800*480 LCD Screen Display Panel
AT062WVM-N10 LCD Panel Product details :
| Brand | BOE |
| Model P/N | AT062WVM-N10 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 137.52(W)×77.232(H) mm |
| Bezel Opening | 141.12(W)×80.62(H) mm |
| Outline Dim. | 155.2(W)×88.2(H) ×7.07(D) mm |
| Treatment | Antiglare |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 20 (Max.)(Tr+Td) |
| Viewing Angle | 75/75/70/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M |
| Light Source | 3S9P WLED , 30K hours , Without Driver |
| Weight | - |
| Designed For | Outdoor High Brightness, Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Power Supply | 3.3/12/16.5/-9V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -25 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
AT062WVM-N10 LCD Panel Specification :
Quality Assurance:
Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.
AT062WVM-N10 LCD Panel Shipping and Package :
AT062WVM-N10 LCD Panel Shipping Information :
Standard Shipping Practices:
We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.
Processing Time:
We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.
Contact Information Requirement:
To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.
Attention – Expedited Shipping Options:
For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.
AT062WVM-N10 LCD Panel Return Policy :
Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.
In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.
Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.
AT062WVM-N10 LCD Panel FAQ :
Q: How do you ship my goods AT062WVM-N10 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AT062WVM-N10 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel AT062WVM-N10 at a very low value ?
A: Yes , we can . pls inform us before shipping .
