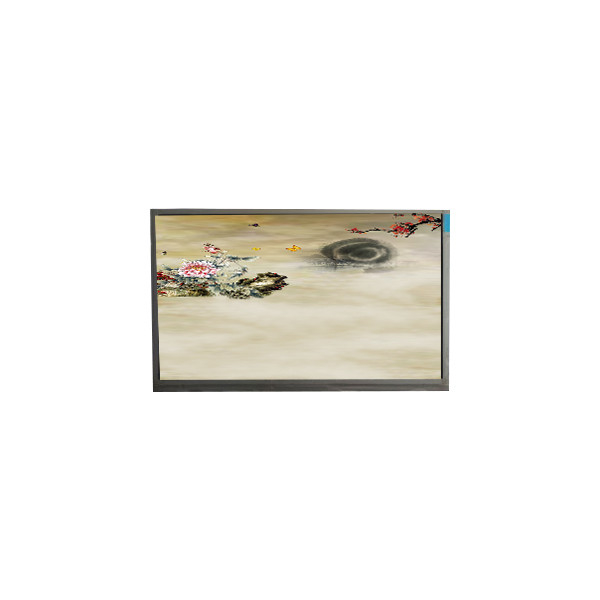

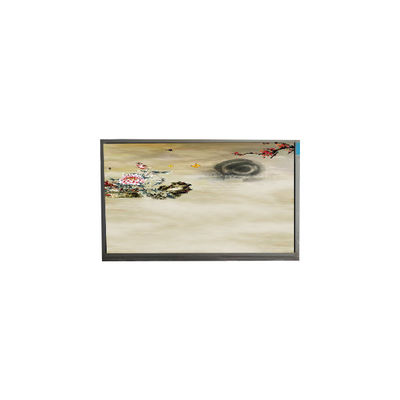

P236MWF2 R0 23.6 inch 1920*1080 TFT-LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | P236MWF2 R0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P236MWF2 R0 | Diagonal Size: | 23.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 93PPI |
| Pixel Format: | RGB Vertical Stripe | Operating Mode: | TN, Normally White, Transmissive |
| Used For: | Desktop Monitor | Signal Type: | LVDS (2 Ch, 8-bit), Connector30 Pins |
Product Description
P236MWF2 R0 23.6 inch 1920*1080 TFT-LCD Screen Display
P236MWF2 R0 LCD Panel Product details :
| Brand | IVO |
| Model P/N | P236MWF2 R0 |
| Diagonal Size | 23.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 93PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 521.28(W)×293.22(H) mm |
| Bezel Opening | - |
| Outline (mm) | 534.48×306.42×1.83 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Response | 1.3/3.7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.70+0.70 mm |
| Transmissivity | 6.54% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 72%NTSC |
| Backlight | No B/L, No Driver |
| Mass | 680±70g |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Suggest COG 6 source COF + 3 gate COG chips |
| Signal Type | LVDS (2 ch, 8-bit), Connector30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
P236MWF2 R0 LCD Panel Specification :
