LCD Screen Display Panel

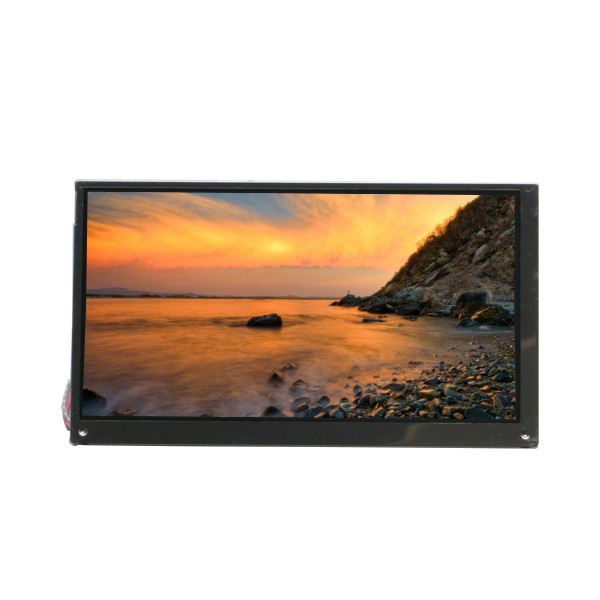

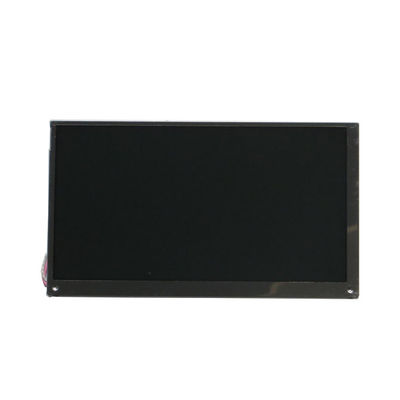

TFD70W10-MM1 7.0 inch 480*234 TFT-LCD Screen Display Panel

All Category

Floor Standing Digital Signage

TFD70W10-MM1 7.0 inch 480*234 TFT-LCD Screen Display Panel

Brand Name:	TOSHIBA
Model Number:	TFD70W10-MM1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TFD70W10-MM1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×234 76PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×87.05(H) Mm

Application:

Automotive Display

Power Supply:

9.0V (Typ.)(VCC)

Supply Ability:

100000 Unit/Units per Month

Product Description

TFD70W10-MM1 7.0 inch 480*234 TFT-LCD Screen Display Panel

TFD70W10-MM1 LCD Panel Product details :

Brand	TOSHIBA
Model P/N	TFD70W10-MM1
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×234 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×87.05(H) mm
Bezel Opening	159.88(W)×92.65(H) mm
Outline Dim.	167.1(H)×102(V)×16(D) mm
Treatment	Antiglare, Reflection 3.0% (Max.)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	100:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	-
Viewing Angle	-
Operating Mode	TN, Normally White, Transmissive
Support Color	Full color
Light Source	CCFL [1 pcs], 10K hours, With Inverter
Weight	-
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Analog RGB + Composite Video (NTSC/PAL), 30 pinsConnector
Power Supply	9.0V (Typ.)(VCC)
Environment	Operating Temperature: -20 ~ 60 °C; Storage Temperature: -40 ~ 85 °C
TFD70W10-MM1 7.0 inch 480*234 TFT-LCD Screen Display Panel

TFD70W10-MM1 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

TFD70W10-MM1 LCD Panel Shipping and Package :

TFD70W10-MM1 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

TFD70W10-MM1 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

TFD70W10-MM1 LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: What happen if the TFD70W10-MM1 received can't work ?

A: Our TFD70W10-MM1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Do you accept the sample order of TFD70W10-MM1 ?

A: Yes, Welcome !

Q: How long the warranty of TFD70W10-MM1 ?

A: 90 days .
