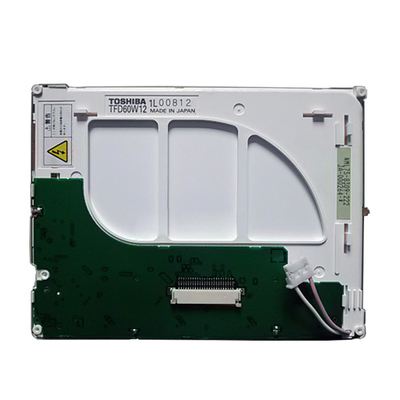

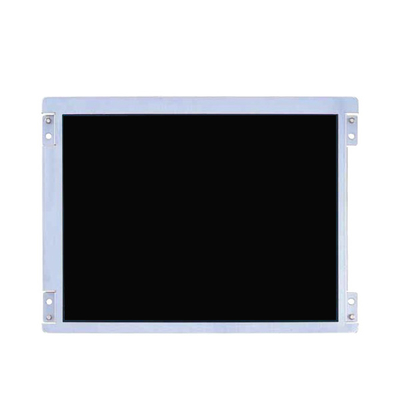

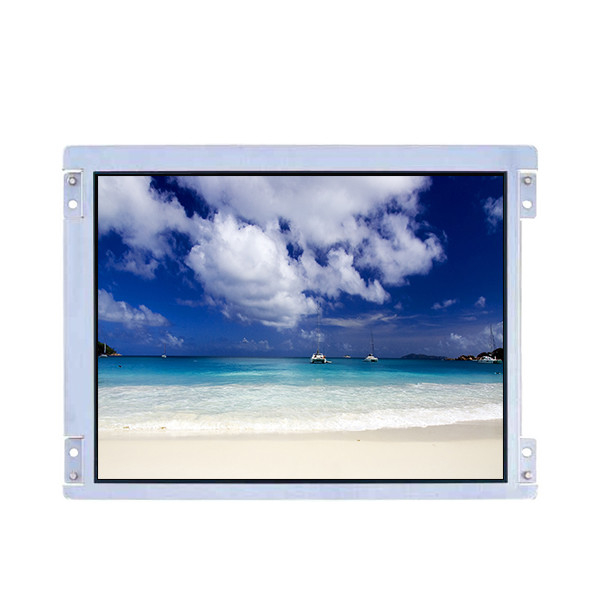

TFD60W12 6.0 inch TFT-LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | TFD60W12 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | TFD60W12 | Diagonal Size: | 6.0" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×234 66PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 121.92(W)×89.154(H) Mm |
Luminance: | 280 Cd/m² (Typ.) | Used For: | Industrial |
Product Description
TFD60W12 6.0 inch TFT-LCD Screen Display Panel
TFD60W12 LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | TFD60W12 |
Diagonal Size | 6.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 320(RGB)×234 66PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 121.92(W)×89.154(H) mm |
Bezel Opening | - |
Outline Size | 144(W)×109.4(H)(D) mm |
Treatment | - |
Luminance | 280 cd/m² (Typ.) |
Contrast Ratio | 80 : 1 (Typ.) (TM) |
Viewing Angle | 45/45/45/15 (Typ.)(CR≥10) |
Response | 70/40 (Max.)(Tr/Td) ms |
Good View at | 12 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | Full color |
Backlight | 1 pcsCCFL, 10K hours, No Driver |
Mass | 210g |
Used for | Industrial |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | TFT Specific Analog RGB, 24 pinsConnector |
Voltage Supply | 5.0/13.0/23.0/-5.0V (Typ.)(VDD/VBB/VGG/VEE) |
Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 65 °C |
TFD60W12 6.0 inch TFT-LCD Screen Display Panel |
TFD60W12 LCD Panel Shipping and Package :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel TFD60W12 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order TFD60W12 ship?
A: The order are shipped within 1-2 working days after received the payment.
