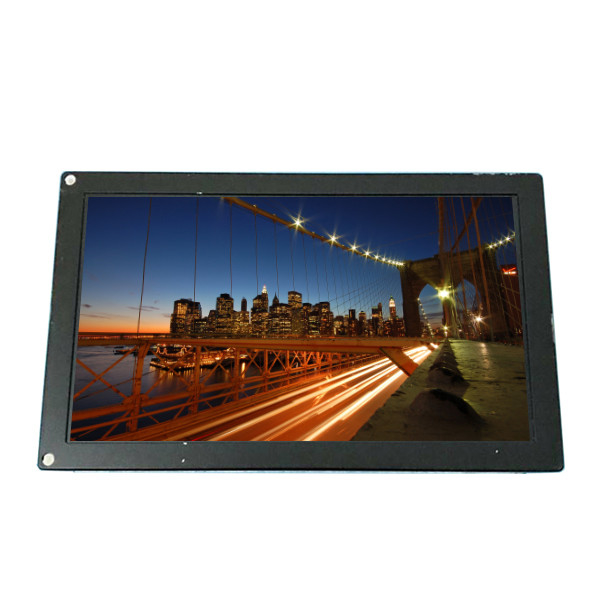

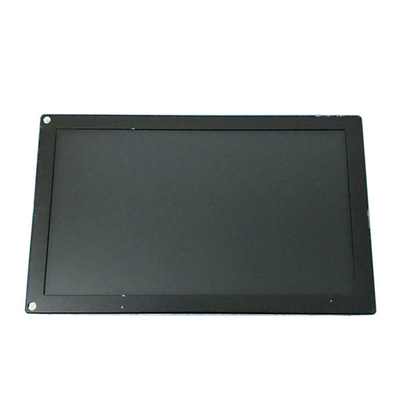

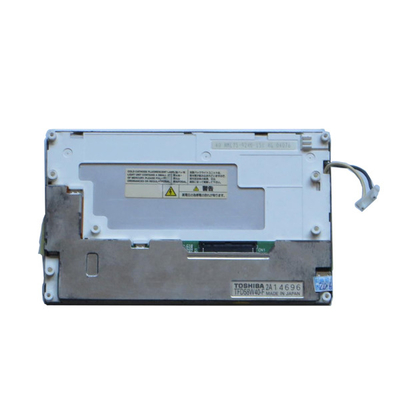

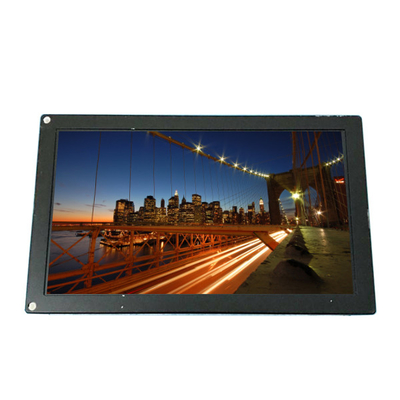

TFD58W40-F 5.8 inch 400*234 TFT-LCD Screen Panel
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | TFD58W40-F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | TFD58W40-F | Diagonal Size: | 5.8" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 400(RGB)×234 80PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 127.2(W)×71.8(H) Mm |
Designed For: | Industrial | Backlight: | CCFL [1 Pcs], W/O Driver |
Product Description
TFD58W40-F 5.8 inch 400*234 TFT-LCD Screen Panel
TFD58W40-F LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | TFD58W40-F |
Diagonal Size | 5.8" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 400(RGB)×234 80PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 127.2(W)×71.8(H) mm |
Bezel Opening | - |
Outline Dim. | 145(H)×89(V)×12.5(D)mm |
Treatment | - |
Luminance | 350 cd/m² (Typ.) |
Contrast Ratio | 80:1 (Typ.) (TM) |
View Direction | - |
Response Time | 100/50 (Max.)(Tr/Td) |
Viewing Angle | - |
Operating Mode | TN, Normally White, Transmissive |
Support Color | Full color |
Light Source | CCFL [1 pcs], W/O Driver |
Weight | 170g (Typ.) |
Designed For | Industrial |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | TFT Specific Analog RGB, 60 pinsConnector |
Power Supply | 5/18.5/-15.5V (Typ.)(VDD/VGH/VGL) |
Environment | Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -20 ~ 70 °C |
TFD58W40-F 5.8 inch 400*234 TFT-LCD Screen Panel |
TFD58W40-F LCD Panel Shipping and Package :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel TFD58W40-F I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order TFD58W40-F ship?
A: The order are shipped within 1-2 working days after received the payment.
