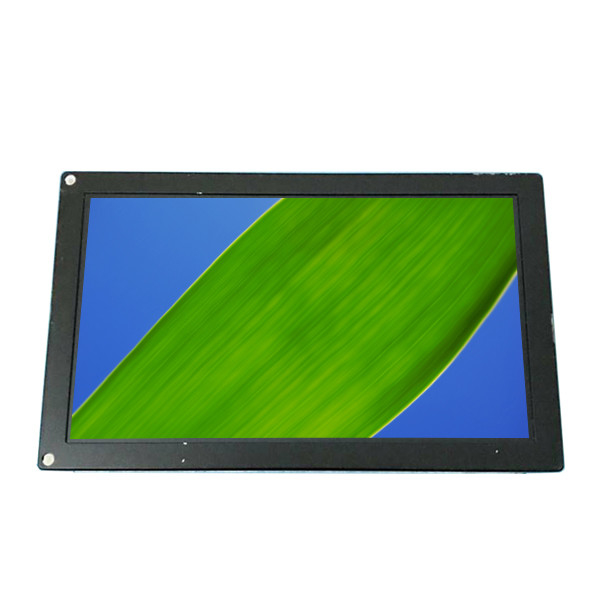

TFD58W26MW 5.8 inch 400*234 TFT-LCD Screen Panel
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | TFD58W26MW |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | TFD58W26MW | Diagonal Size: | 5.8" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 400(RGB)×234 80PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 127.2(W)×71.8(H) Mm |
Designed For: | Industrial | Backlight: | 1 PcsCCFL |
Product Description
TFD58W26MW 5.8 inch 400*234 TFT-LCD Screen Panel
TFD58W26MW LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | TFD58W26MW |
Diagonal Size | 5.8" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 400(RGB)×234, WQVGA 80PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 127.2(W)×71.8(H) mm |
Bezel Opening | - |
Outline(mm) | 145 × 89 (H×V×D) |
Treatment | - |
Luminance | 350 cd/m² (Typ.) |
Contrast Ratio | 350 : 1 (Min.) (TM) |
Viewing Angle | 55/55/30/60 (Typ.)(CR≥10) |
Response | 20/40 (Typ.)(Tr/Td) ms |
Good View at | - |
Work Mode | TN, Normally White, Transmissive |
Color Depth | Full color |
Backlight | 1 pcsCCFL |
Mass | 200g |
Used for | Industrial |
Refresh Rate | - |
Touchscreen | Without |
Signal Type | Analog |
Max. Ratings | - Operating Temp.: -20 ~ 60 °C |
TFD58W26MW 5.8 inch 400*234 TFT-LCD Screen Panel |
TFD58W26MW LCD Panel Shipping and Package :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How long will I receive my goods of lcd TFD58W26MW ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order TFD58W26MW ship?
A: The order are shipped within 1-2 working days after received the payment.
