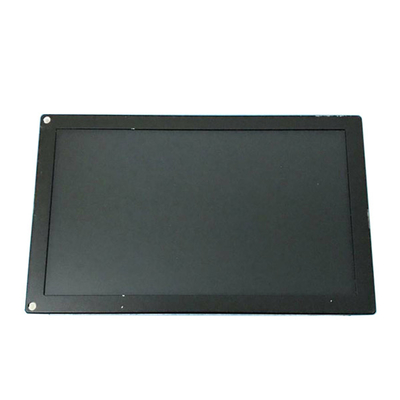

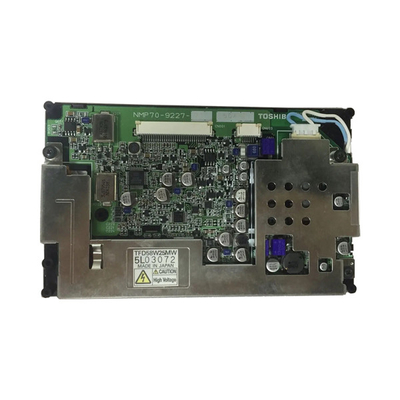

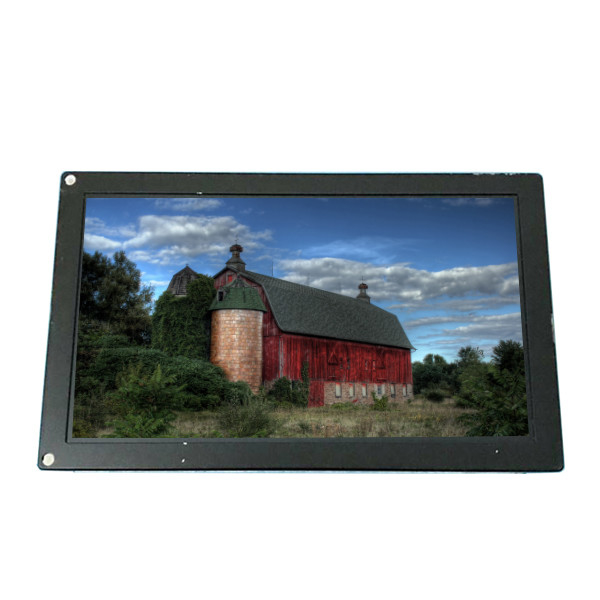

TFD58W25MW 5.8 inch TFT-LCD Screen Panel Display
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | TFD58W25MW |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | TFD58W25MW | Diagonal Size: | 5.8" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 400(RGB)×234 80PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 127.2(W)×71.8(H) Mm |
Designed For: | Automotive Display | Frame Rate: | 60Hz |
Product Description
TFD58W25MW 5.8 inch TFT-LCD Screen Panel Display
TFD58W25MW LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | TFD58W25MW |
Diagonal Size | 5.8" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 400(RGB)×234 80PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 127.2(W)×71.8(H) mm |
Bezel Opening | - |
Luminance | - |
Contrast Ratio | 100:1 (Typ.) (TM) |
View Direction | 12 o'clock |
Response Time | - |
Viewing Angle | - |
Operating Mode | TN, Normally White, Transmissive |
Support Color | Full color |
Light Source | CCFL [1 pcs], 10K hours |
Weight | - |
Designed For | Automotive Display |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | Analog RGB + Composite Video (NTSC/PAL), 30 pinsConnector |
Power Supply | 9.0V (Typ.)(VCC) |
Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -40 ~ 85 °C |
TFD58W25MW 5.8 inch TFT-LCD Screen Panel Display |
TFD58W25MW LCD Panel Shipping and Package :
TFD58W25MW LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How long will I receive my goods of lcd TFD58W25MW ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen
Q: When will my order TFD58W25MW ship?
A: The order are shipped within 1-2 working days after received the payment.
