LCD Screen Display Panel

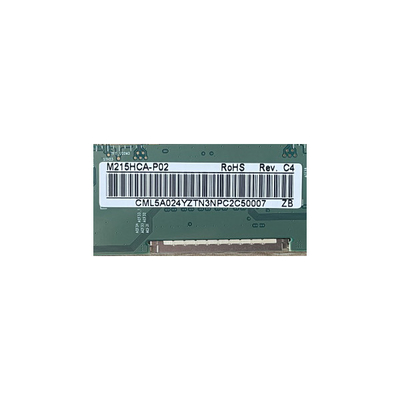

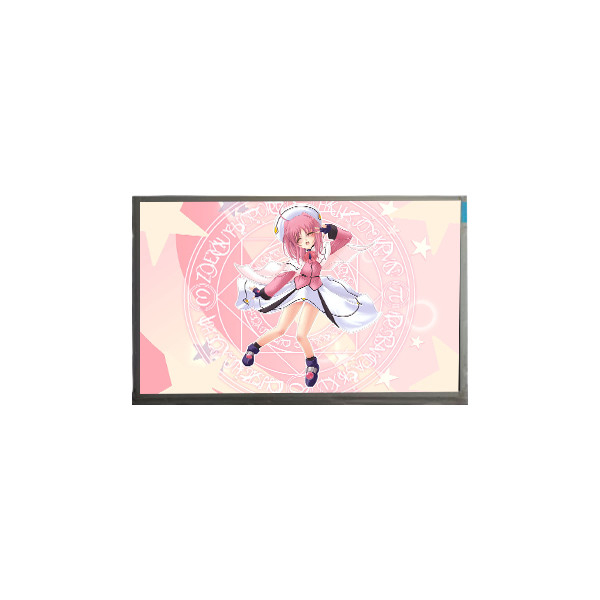

M215HCA-P02 21.5 inch TFT-LCD Screen Panel Display

All Category

Floor Standing Digital Signage

M215HCA-P02 21.5 inch TFT-LCD Screen Panel Display

Brand Name:	Innolux
Model Number:	M215HCA-P02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M215HCA-P02

Diagonal Size:

21.5"

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

476.064(W)×267.786(H) Mm

Luminance:

0 Cd/m²

Response Time:

8/7 (Typ.)(Tr/Td) Ms

Color Depth:

16.7M 72%NTSC

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M215HCA-P02 21.5 inch TFT-LCD Screen Panel Display

M215HCA-P02 LCD Panel Product details :

Brand	Innolux
Model P/N	M215HCA-P02
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	476.064(W)×267.786(H) mm
Bezel Opening	-
Outline (mm)	484.26×279.486×1.3 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	8/7 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	AAS, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	4.45% (Typ.)(with Polarizer)
Color Depth	16.7M 72%NTSC
Backlight	No B/L
Mass	410±20g
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-in COF 6 source chips
Signal Type	LVDS (2 ch, 8-bit), Connector30 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M215HCA-P02 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

M215HCA-P02 LCD Panel Shipping and Package :

M215HCA-P02 LCD Panel Information :

1. Compatibility Verification:

Machine Model: Ensure that the screen is compatible with your specific machine model. Even if the model number matches, different machines may have variations in screen types.

Backlight Type: Check the backlight type of your original screen and ensure compatibility with the M215HCA-P02 LCD screen.

Size: Confirm that the size of the M215HCA-P02 LCD screen matches the size of your original screen to ensure proper fitment.

Data Cable Pins: Verify the configuration of the data cable pins on both the original screen and the M215HCA-P02 LCD screen to ensure compatibility.

Resolution: Match the resolution of the M215HCA-P02 LCD screen with the resolution of your original screen to maintain display clarity and quality.

2. Multiple Screen Types:

Note that even if the model number matches, the same machine model can have multiple screen types. Therefore, it is essential to compare specifications beyond just the model number.

3. LCD Backlight Screen:

The M215HCA-P02 LCD screen is specifically designed as an LCD backlight screen. Ensure that this matches your requirements before making a purchase.

4. Compatibility Check:

Before finalizing your purchase, thoroughly check if the model number and part number of the M215HCA-P02 LCD screen are compatible with your machine.

By carefully verifying these factors, you can avoid compatibility issues and ensure that the M215HCA-P02 LCD screen is the right choice for your needs.

M215HCA-P02 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

M215HCA-P02 LCD Panel FAQ :

Q: Can I pay my order of M215HCA-P02 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of M215HCA-P02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of M215HCA-P02 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
