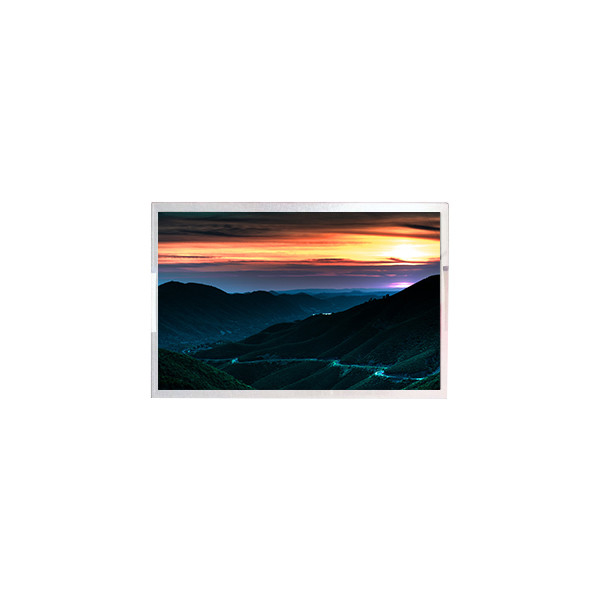

23.8 inch 1920*1080 MV238FHB-NX5 lcd screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHB-NX5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHB-NX5 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 527.04(W)×296.46(H) Mm |
| Support Color: | 16.7M 99% SRGB | Light Source: | No B/L , Without Driver |
| Designed For: | Desktop Monitor | Frame Rate: | 100Hz |
Product Description
23.8 inch 1920*1080 MV238FHB-NX5 lcd screen display
MV238FHB-NX5 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238FHB-NX5 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Dim. | 534.84(W)×306.86(H) ×1.32(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.9% (Typ.)(with Polarizer) |
| Support Color | 16.7M 99% sRGB |
| Light Source | No B/L , Without Driver |
| Weight | 510g (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 100Hz |
| Driver IC | COF Built-in 4 source chips |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
MV238FHB-NX5 LCD Panel Shipping and Package :
MV238FHB-NX5 LCD Screen - Shipping Method Information:
1. Shipping Carrier Flexibility:
Depending on your preference or logistical considerations, we offer flexibility in shipping carriers. For example, if you choose FedEx, we may opt to use a similarly reliable express service such as DHL, UPS, or TNT.
2. Equivalent Express Service:
To ensure the same level of service quality, we strive to select an express shipping method that is equivalent to the carrier chosen by the buyer. This approach guarantees that you receive the same standards of efficiency and reliability.
3. Specified Logistics Requests:
If you have specific preferences or requirements for the logistics provider, please inform us in advance. We understand that certain situations may necessitate the use of a particular shipping company, and we are committed to accommodating your needs.
4. Communication is Key:
Open communication is essential in ensuring a smooth shipping process. If you have a preference for a particular shipping method or carrier, kindly inform us at the time of purchase or as early as possible. This allows us to make the necessary arrangements based on your specifications.
MV238FHB-NX5 LCD Screen Reminder :
To our valued customers in Russia and Brazil, please take note of the following important reminder regarding shipping methods:
1. Shipping Restriction for Russia and Brazil:
For customers in Russia and Brazil, we can only send shipments through EMS (Express Mail Service). This is a requirement or restriction specific to these countries.
2. EMS Shipping Duration:
EMS shipping typically takes more days to arrive compared to standard shipping methods. We appreciate your understanding and patience during this extended delivery timeframe.
3. Importance of Patience:
Given the longer duration associated with EMS shipping to Russia and Brazil, your patience is sincerely appreciated. We understand that timely delivery is crucial, and we are committed to keeping you informed about the progress of your shipment.
4. Customer Attention:
It's important for customers in Russia and Brazil to pay special attention to this reminder. By adhering to the specified shipping method, we can ensure a smooth and compliant shipping process.
MV238FHB-NX5 LCD Screen Return Policy:
1. One-Month Warranty:
All items come with a one-month warranty. This warranty covers the option for either a refund or exchange.
2. Refund or Reshipment for Non-Received Items:
For items that are not received within the estimated shipping time, we offer a refund or free reshipment to ensure customer satisfaction.
3. 7-Day Return for Non-Quality Problem:
If you are not satisfied with an item (non-quality problem) within 7 days of receipt, you may exchange or request a refund under the condition that the item is unused, in its original, unmounted condition, and suitable for resale. The customer is responsible for all return charges.
4. Refund Process for Non-Quality Returns:
For returns due to customer preference, we will refund the customer the item's price (excluding shipping costs to and from) upon receiving the returned item.
5. Defective or Non-Functioning Items:
If any item is defective upon receipt or does not work, please contact us for the return address. Returns are accepted within 30 days after the buyer receives the item. The returned item must be in its original condition. The buyer is responsible for return shipping costs.
6. Replacement Process for Defective Items:
Upon receiving the return, we will promptly make a replacement for the defective item.
MV238FHB-NX5 LCD Panel FAQ :
Q: Can you tested the MV238FHB-NX5 before shipping ?
A: Of course , our lcd panel MV238FHB-NX5 was Strictly tested before shipping.
Q: How to order MV238FHB-NX5 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel MV238FHB-NX5 received can't work ?
A:MV238FHB-NX5 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
