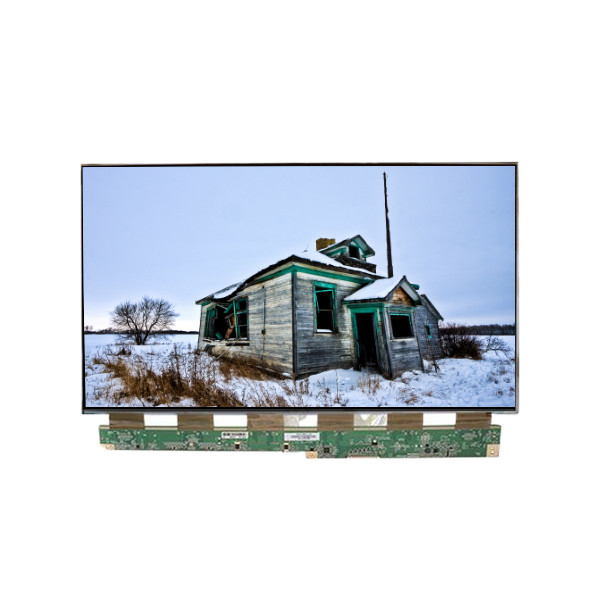

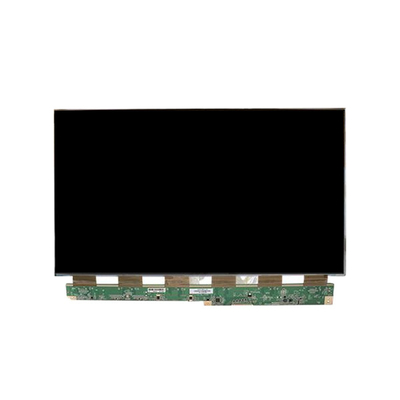

MV215FHB-NS0 21.5 inch LCD Screen Panel Display For Desktop Monitor

Brand Name:	BOE
Model Number:	MV215FHB-NS0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV215FHB-NS0

Diagonal Size:

21.5"

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

478.656(W)×260.28(H) Mm

Luminance:

0 Cd/m²

Contrast Ratio:

1000:1 (Typ.) (TM)

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Color Depth:

16.7M

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

MV215FHB-NS0 21.5 inch LCD Screen Panel Display For Desktop Monitor

MV215FHB-NS0 LCD Panel Product details :

Brand	BOE
Model P/N	MV215FHB-NS0
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	478.656(W)×260.28(H) mm
Bezel Opening	-
Outline Size	487.456(W)×270.18(H)×1.32(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	14 (Typ.)(G to G)
Glass Depth	0.50+0.50 mm
Transmissivity	4.8% (Typ.)(with Polarizer)
Display Colors	16.7M
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Driver IC	COF Built-in 6 source chips
Panel Weight	400g (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

MV215FHB-NS0 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

MV215FHB-NS0 LCD Panel Shipping and Package :

MV215FHB-NS0 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

MV215FHB-NS0 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

MV215FHB-NS0 LCD Panel FAQ :

Q: How can I trace my order of MV215FHB-NS0 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of MV215FHB-NS0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of MV215FHB-NS0 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of MV215FHB-NS0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
