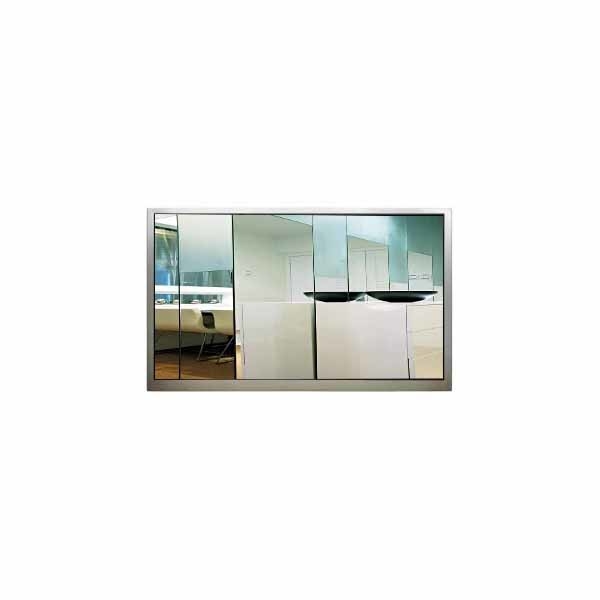

HSD103JPW2-F10-0299 10.3 Inch TFT-LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD103JPW2-F10-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD103JPW2-F10-0299 | Diagonal Size: | 10.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 200PPI | Pixel Format: | RGB Vertical Stripe |
| Backlight: | No B/L | Application: | Automotive Display |
| Support Color: | 16.7M 75% NTSC | Operating Mode: | IPS Pro, Normally Black, Transmissive |
| Voltage Supply: | 3.3V (Typ.) | Max. Ratings: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C |
Product Description
HSD103JPW2-F10-0299 10.3 Inch TFT-LCD Screen Display Panel
HSD103JPW2-F10-0299 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD103JPW2-F10-0299 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.648(W)×91.368(H) mm |
| Bezel Opening | - |
| Outline(mm) | 252.5(W)×103.5(H)×1.27(D) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | - |
| Color Depth | 16.7M 75% NTSC |
| Mass | TBD |
| Refresh Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Response | 30 (Max.)(Tr+Td) ms |
| Transmissivity | 2.85% (Typ.)(with Polarizer) |
| Backlight | No B/L |
| Used for | Automotive Display |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 50 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C |
About Us - HSD103JPW2-F10-0299 LCD Panel :
Extensive Inventory:
We are proud to maintain an expansive inventory, storing over 10,000 LCD screens in our dedicated warehouse. This substantial stock availability allows us to shorten the delivery cycles for most of our products, ensuring that your needs are met promptly and efficiently. Whether you're seeking a single replacement screen or bulk orders, we are equipped to handle your requests with speed and precision.
Customer Service Commitment:
Our customer service team is available for 24 hours daily to assist you with any inquiries or issues you may encounter. We strive to provide exceptional service and support to all our customers. If you have any questions regarding our products, your order, or need assistance with anything else, please do not hesitate to contact our sales personnel. We are here to ensure your satisfaction and to help with any concerns you might have.
Technical Support Expertise:
We also boast an experienced technical support team, comprised of knowledgeable professionals who are ready to assist you with any technical questions or difficulties you may encounter with our LCD panels. Our team is skilled in diagnosing issues and providing effective solutions, ensuring that you can maximize the use of your purchased products without delay.
Connect with Us:
We value our relationship with each customer and are eager to provide the support and services you require. For assistance, please reach out to us through the preferred communication channels mentioned on our eBay store. Our goal is to ensure a smooth and pleasant experience with every transaction, backed by our expert teams in inventory management, customer service, and technical support.
HSD103JPW2-F10-0299 LCD Panel Shipping and Package :
HSD103JPW2-F10-0299 LCD Screen Packing Shipping :
Packaging Materials:
Anti-static Transparent Plastic Bags: Each LCD screen is first enclosed in an anti-static plastic bag. This bag prevents the buildup of electrostatic charges, which could potentially damage the electronic components.
Paper Anti-static Foam Boxes: Following the initial bagging, the item is then securely placed in a paper anti-static foam box. This box provides additional electrostatic discharge (ESD) protection and cushions the screen against mechanical shocks during transit.
Outer Paper Boxes: The foam box is then placed into a sturdy paper box to provide further protection and structural stability during shipping.
Custom Packaging Options: For customers with specific packaging needs, we offer customizable packaging options. You can request these to ensure the utmost safety of the products according to your particular requirements.
Shipping Options:
Express Courier Services: We primarily use renowned courier services such as DHL, EMS, UPS, TNT, etc., to ship the LCD screens. These services are chosen for their reliability and speed in delivery, ensuring that your order reaches you promptly and in excellent condition.
Airway Shipping: For certain destinations or customer preferences, shipping via airway is available. This method is also reliable and efficient, especially for larger shipments or when timing is a crucial factor.
Tracking and Delivery:
Tracking Information: Once the package is shipped, you will receive a tracking number. This number allows you to monitor the progress of your shipment via the courier's website, giving you clear visibility of the delivery status and estimated arrival time.
HSD103JPW2-F10-0299 LCD Screen Tariffs and fees:
No Additional Charges from Us:
We ensure that there are no extra fees charged on any customer orders. This means that the price you see is the price you pay, without any hidden or additional costs from our end.
Customs and Import Duties:
Once the parts arrive at your local customs, please be aware that there might be applicable tariffs. It is important to note that we are not responsible for any customs duties or import taxes that may be charged. These charges are the responsibility of the recipient and vary from one country to another. Therefore, we advise customers to check local regulations and prepare for any potential extra costs.
Shipping Information:
All standard shipping items are dispatched using international aviation from Hong Kong. Under normal circumstances, the delivery time ranges from 7 to 14 working days, which equates to about 2 to 3 weeks for most regions. However, please allow for variability based on your specific location and local postal service efficiency.
Extended Delivery Times:
If you have not received your items within 30 working days (approximately 5 weeks) from the date of dispatch, please get in touch with us so we can assist you with a follow-up or investigation into the delay. For customers in Russia and the United Kingdom, please note that delivery might take longer, approximately 5 to 9 weeks, due to longer transit times and customs processes.
HSD103JPW2-F10-0299 LCD Panel FAQ :
Q: How do you ship my goods HSD103JPW2-F10-0299 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of HSD103JPW2-F10-0299 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel HSD103JPW2-F10-0299 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Want to Know more details about this product
