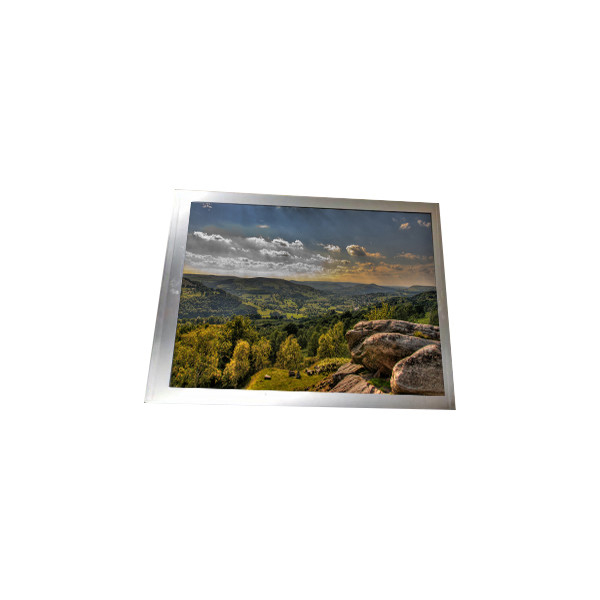

COG-VLJP7016-01 10.1 inch 1280*720 TFT LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | COG-VLJP7016-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | COG-VLJP7016-01 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 145PPI | Pixel Format: | RGB Vertical Stripe |
| Luminance: | 700 Cd/m² (Typ.) | Application: | Outdoor High Brightness ，Automotive Display |
| Support Color: | 16.7M 75% NTSC | Operating Mode: | ADS, Normally Black, Transmissive |
| Response Time: | 30 (Max.)(Tr+Td) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Product Description
COG-VLJP7016-01 10.1 inch 1280*720 TFT LCD Screen Panel
COG-VLJP7016-01 LCD Panel Product details :
| Brand | BOE |
| Model P/N | COG-VLJP7016-01 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 145PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 223.68(W)×125.82(H) mm |
| Bezel Opening | 226.68(W)×128.82(H) mm |
| Outline Dim. | 233.9(W)×141.4(H) ×12(D) mm |
| Treatment | Antiglare |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 75% NTSC |
| Light Source | 8S4P WLED , 30K hours , Without Driver |
| Weight | 347±30g |
| Designed For | Outdoor High Brightness ,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 60 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
