B156HAN02.7 15.6 inch lcd display replacement for Laptop

Brand Name:	AUO
Model Number:	B156HAN02.7
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156HAN02.7

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.16(W)×193.59(H) Mm

Color Depth:

262K 46% NTSC

Backlight:

WLED, 15K Hours , With LED Driver

Used For:

Laptop

Interface Type:

EDP (2 Lanes), EDP1.230 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

B156HAN02.7 15.6 inch lcd display replacement for Laptop

B156HAN02.7 LCD Panel Product details :

Brand	AUO
Model P/N	B156HAN02.7
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Dim.	350.66(W)×216.15(H)×3.2(D) mm
Luminance	250 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Support Color	262K 46% NTSC
Form Style	Slim (PCBA Flat, T≤3.2mm)
Frame Rate	60Hz
Treatment	Glare (Haze 0%)
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	25 (Typ.)(Tr+Td)
Operating Mode	AHVA, Normally Black, Transmissive
Light Source	WLED, 15K hours , With LED Driver
Designed For	Laptop
Touch Panel	Without
Interface Type	eDP (2 Lanes), eDP1.230 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

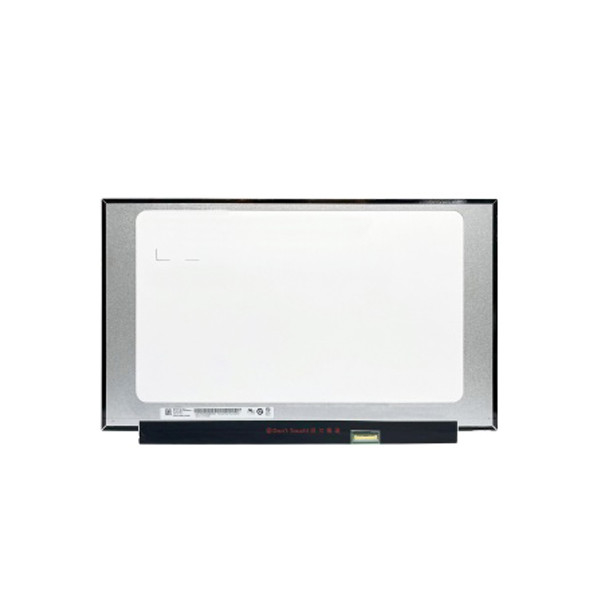

B156HAN02.7 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

B156HAN02.7 LCD Panel Shipping and Package :

B156HAN02.7 15.6 inch lcd display replacement for Laptop 0

B156HAN02.7 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

B156HAN02.7 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

B156HAN02.7 LCD Panel FAQ :

Q: Can You declare my order of B156HAN02.7 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of B156HAN02.7 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of B156HAN02.7 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I order B156HAN02.7 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.
