G057VN01 V220 5.7 inch lcd panel replacement Industrial screen

Brand Name:	AUO
Model Number:	G057VN01 V220
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G057VN01 V220

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Support Color:

262K 50%NTSC

Lamp Type:

WLED, 70K Hours, With LED Driver

Application:

Industrial

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

G057VN01 V220 5.7 inch lcd panel replacement Industrial screen

G057VN01 V220 LCD Panel Product details :

Brand	AUO
Model P/N	G057VN01 V220
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.2(W)×89.4(H) mm
Outline Size	144(W)×104.6(H)×12.8(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	700 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	15/10 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	AHVA, Normally Black, Transmissive
Color Depth	262K 50%NTSC
Backlight	WLED, 70K hours, With LED Driver
Mass	150/165g (Typ./Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	CMOS (1 ch, 6-bit), 33 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C

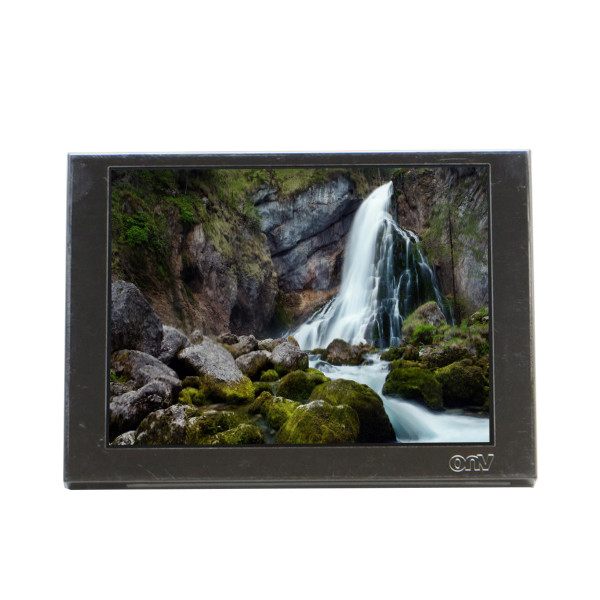

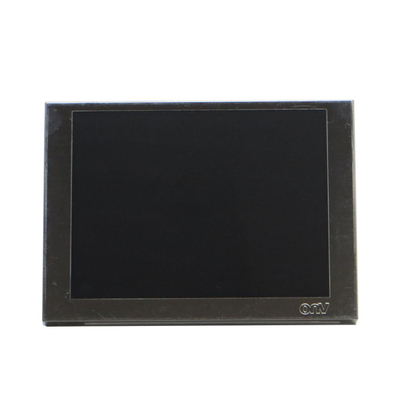

G057VN01 V220 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

G057VN01 V220 LCD Panel Shipping and Package :

G057VN01 V220 5.7 inch lcd panel replacement Industrial screen 0

G057VN01 V220 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

G057VN01 V220 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

G057VN01 V220 LCD Panel FAQ :

Q: Can you tested the G057VN01 V220 before shipping ?

A: Of course , our lcd panel G057VN01 V220 was Strictly tested before shipping.

Q: How to order G057VN01 V220 ?

A: We accept T/T , Paypal , western union .

Q: How long the warranty of the lcd G057VN01 V220 ?

A: 90 days .

Q: What happen if the lcd panel G057VN01 V220 I received can't work ?

A: G057VN01 V220 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
