B173RTN03.2 17.3 inch 1600*900 eDP lcd display module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B173RTN03.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B173RTN03.2 | Diagonal Size: | 17.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1600(RGB)×900, HD+ 106PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 382.08(W)×214.92(H) Mm |
| Support Color: | 16.2M 60%NTSC | Lamp Type: | WLED, 15K Hours, With LED Driver |
| Application: | Laptop | Frequency: | 60Hz |
Product Description
B173RTN03.2 17.3 inch 1600*900 eDP lcd display module
B173RTN03.2 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B173RTN03.2 |
| Diagonal Size | 17.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×900, HD+ 106PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 382.08(W)×214.92(H) mm |
| Bezel Opening | - |
| Outline Dim. | 389.88(H)×236.52(V)×3.5(D)mm |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.2M 60%NTSC |
| Light Source | WLED, 15K hours, With LED Driver |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane), eDP1.2, 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

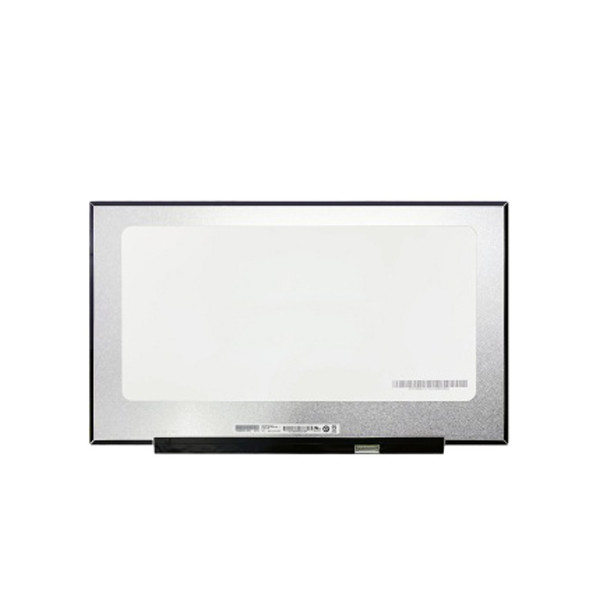

B173RTN03.2 LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
B173RTN03.2 LCD Panel Shipping and Package :
B173RTN03.2 LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
B173RTN03.2 LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
B173RTN03.2 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the B173RTN03.2 sample order?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel B173RTN03.2 before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of B173RTN03.2 ?
A: 90DAYS.
Q: How long will I receive my goods of lcd B173RTN03.2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
