H546DLB01.1 5.5 inch Touch Lcd Panel Monitor For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | H546DLB01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | H546DLB01.1 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Panel Type: | AM-OLED, OLED, Full Module | Resolution: | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×120.96(H) Mm |
| Support Color: | 16.7M 103%NTSC | Lamp Type: | Self |
| Application: | Mobile Phone | ||
Product Description
H546DLB01.1 5.5 inch Touch Lcd Panel Monitor For Mobile Phone
H546DLB01.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | H546DLB01.1 |
| Diagonal Size | 5.5" |
| Panel Type | AM-OLED, OLED, Full Module |
| Resolution | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.84(H)×128.01(V)×1.03(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 10000:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) |
| Operating Mode | - |
| Support Color | 16.7M 103%NTSC |
| Light Source | self |
| Weight | TBD |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | On-Cell Touch, I²C |
| D-IC Detail | COG Built-in RM69070 |
| Interface Type | MIPI (2 data lanes), 40 pinsConnector |
| Power Supply | 1.8/3.0/4.6/7.6V (Typ.)(IOVCC/VCI/OVDD/AVDD) |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -55 ~ 125 °C |

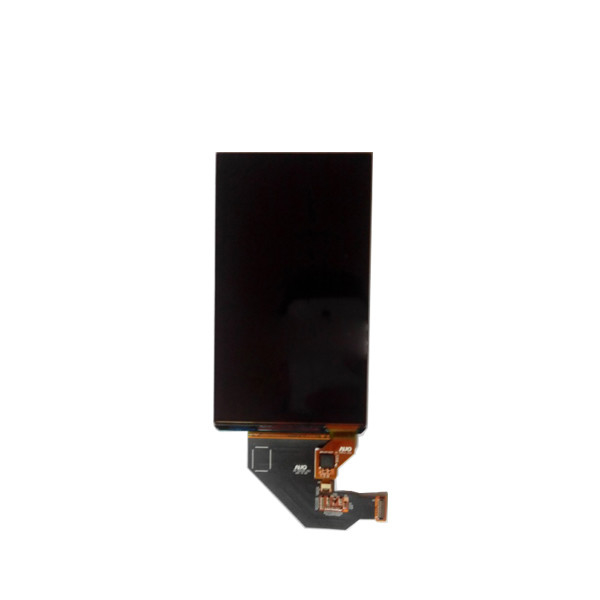

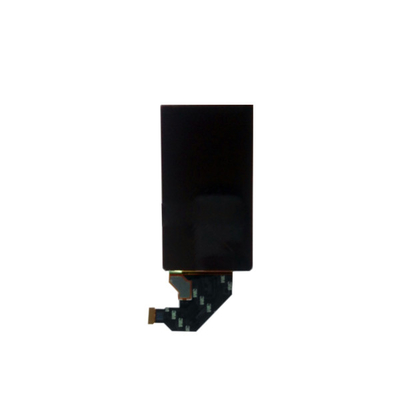

H546DLB01.1 LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
H546DLB01.1 LCD Panel Shipping and Package :
H546DLB01.1 LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
H546DLB01.1 LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
H546DLB01.1 LCD Panel FAQ :
Q: Can I pay my order of H546DLB01.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of H546DLB01.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of H546DLB01.1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
