New QV185FHB-N83 18.5 inch 1920*1080 LCD Panel Screen

Brand Name:	BOE
Model Number:	QV185FHB-N83
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

QV185FHB-N83

Diagonal Size:

18.5"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1920(RGB)×1080, FHD 119PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

408.96(W)×230.04(H) Mm

Support Color:

16.7M 72% NTSC

Lamp Type:

No B/L

Application:

Digital Signage

Frequency:

Supply Ability:

100000 Unit/Units per Month

Highlight:

QV185FHB-N83

QV185FHB-N83 LCD Panel Screen

18.5 inch LCD Panel Screen

Product Description

New QV185FHB-N83 18.5 inch 1920*1080 LCD Panel Screen

QV185FHB-N83 LCD Panel Product details :

Brand	BOE
Model P/N	QV185FHB-N83
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 119PPI
Pixel Format	RGBW Vertical Stripe
Active Area	408.96(W)×230.04(H) mm
Bezel Opening	-
Outline Size	422.2 × 244.1 × 1.22 (H×V×D)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	HADS, Normally Black, Transmissive
Glass Thickness	0.40+0.50 mm
Transmissivity	3.7% (Typ.)(with Polarizer)
Best View on	Symmetry
Response Time	14 (Typ.)(G to G) ms
Display Colors	16.7M 72% NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Panel Weight	330g (Typ.)
Application	Digital Signage
Driver IC list	Built-in COF 3 source chips
Signal Interface	eDP (2 Lanes) , eDP1.4 , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

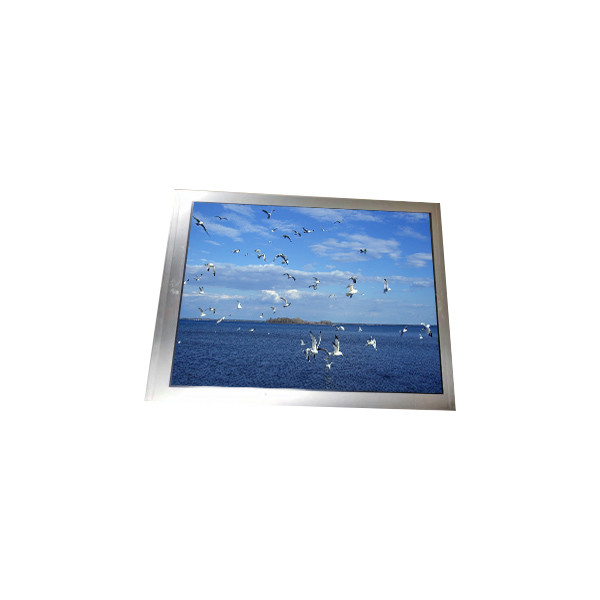

QV185FHB-N83 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

QV185FHB-N83 LCD Panel Shipping and Package :

New QV185FHB-N83 18.5 inch 1920*1080 LCD Panel Screen 0

QV185FHB-N83 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

QV185FHB-N83 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

QV185FHB-N83 LCD Panel FAQ :

Q: Can You declare my order of QV185FHB-N83 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of QV185FHB-N83 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of QV185FHB-N83 ?

A: Of course!If you make a large order, we will give you a discount.
