B156HAN07.1 HW0A 15.6 inch 1080p lcd screen high quality

Brand Name:	AUO
Model Number:	B156HAN07.1 HW0A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156HAN07.1 HW0A

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.16(W)×193.59(H) Mm

Support Color:

16.7M 72%NTSC

Lamp Type:

WLED , 15K Hours , With LED Driver

Application:

Laptop、Gaming

Frequency:

144Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

B156HAN07.1 HW0A 15.6 inch 1080p lcd screen high quality

B156HAN07.1 HW0A LCD Panel Product details :

Brand	AUO
Model P/N	B156HAN07.1 HW0A
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Size	359.5(W)×223.8(H)×3.2(D) mm
Brightness	300 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 72%NTSC
Frequency	144Hz
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Surface	Antiglare
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	AHVA, Normally Black, Transmissive
Response Time	9 (Typ.)(Tr+Td), 7 (Typ.)(G to G)
Lamp Type	WLED , 15K hours , With LED Driver
Touch Screen	Without
Application	Laptop,Gaming
Signal Interface	eDP (4 Lanes), eDP1.4, 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

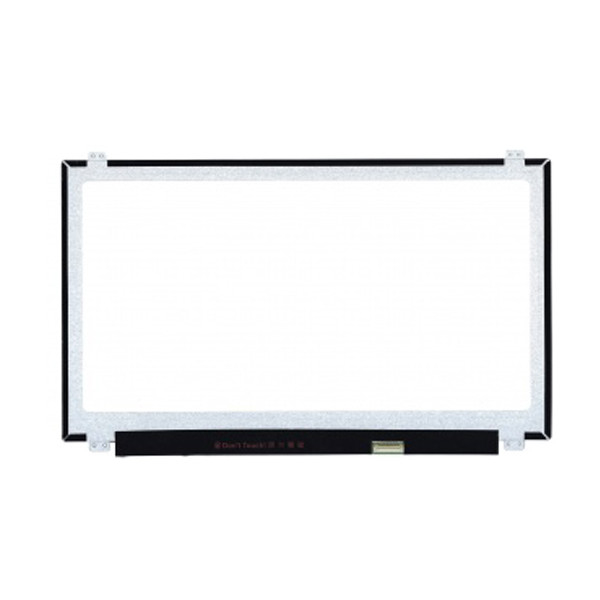

B156HAN07.1 HW0A LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

B156HAN07.1 HW0A LCD Panel Shipping and Package :

B156HAN07.1 HW0A 15.6 inch 1080p lcd screen high quality 0

B156HAN07.1 HW0A LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

B156HAN07.1 HW0A LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

B156HAN07.1 HW0A LCD Panel FAQ :

Q: When will my order 15.6 inch lcd panel B156HAN07.1 HW0A ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 15.6 inch lcd panel B156HAN07.1 HW0A before shipping?

A: Don't Worry , The B156HAN07.1 HW0A was tested ok before shipping.

Q: What happen if B156HAN07.1 HW0A I received can't work ?

A: The B156HAN07.1 HW0A will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
