LCD Laptop Screen

B156XTN05.3 LCD Screen 15.6 Inch LCD Display Panel

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

B156XTN05.3 LCD Screen 15.6 Inch LCD Display Panel

Brand Name:	AUO
Model Number:	B156XTN05.3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156XTN05.3

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Support Color:

262K 45%NTSC

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

B156XTN05.3 LCD Screen 15.6 Inch LCD Display Panel

B156XTN05.3 LCD Panel Product details :

Brand	AUO
Model P/N	B156XTN05.3
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	-
Outline Size	366.38(W)×224.56(H)×5.2(D) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Brightness	220 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	8 (Typ.)(Tr+Td)
Display Colors	262K 45%NTSC
Lamp Type	WLED, 15K hours, With LED Driver
Frequency	60Hz
Touch Screen	PCAP
Shape Style	Flat (PCBA Flat, T3.4~4.0mm)
Application	Laptop
Signal Interface	eDP (2 Lanes), eDP1.2, 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

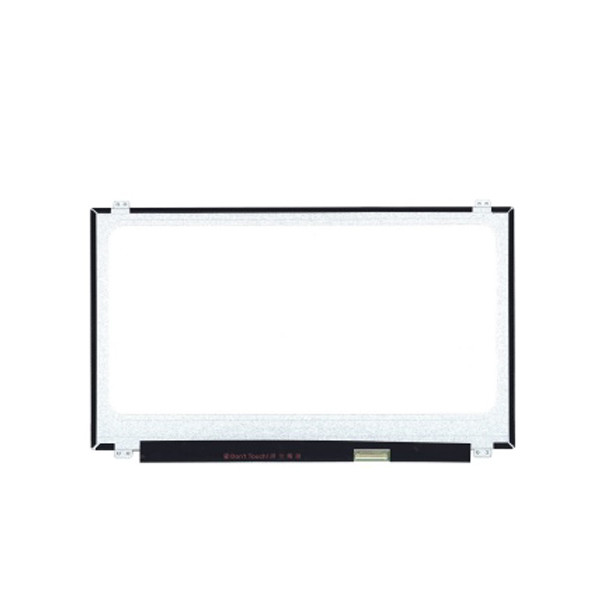

B156XTN05.3 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

B156XTN05.3 LCD Panel Shipping and Package :

B156XTN05.3 LCD Screen 15.6 Inch LCD Display Panel 0

B156XTN05.3 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

B156XTN05.3 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

B156XTN05.3 LCD Panel FAQ :

Q: Can I pay my order of B156XTN05.3 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of B156XTN05.3 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of B156XTN05.3 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
