B156HAN07.1 HW2A 15.6 inch tft lcd display Laptop screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156HAN07.1 HW2A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HAN07.1 HW2A | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.16(W)×193.59(H) Mm |
| Support Color: | 16.7M 72%NTSC | Frame Rate: | 144Hz |
Product Description
B156HAN07.1 HW2A 15.6 inch tft lcd display Laptop screen
B156HAN07.1 HW2A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B156HAN07.1 HW2A |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline (mm) | 359.5×223.8×3.2 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 9 (Typ.)(Tr+Td), 7 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | WLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop,Gaming |
| Refresh Rate | 144Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes), eDP1.4, Connector40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

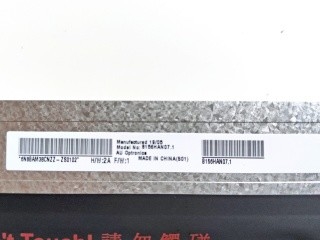

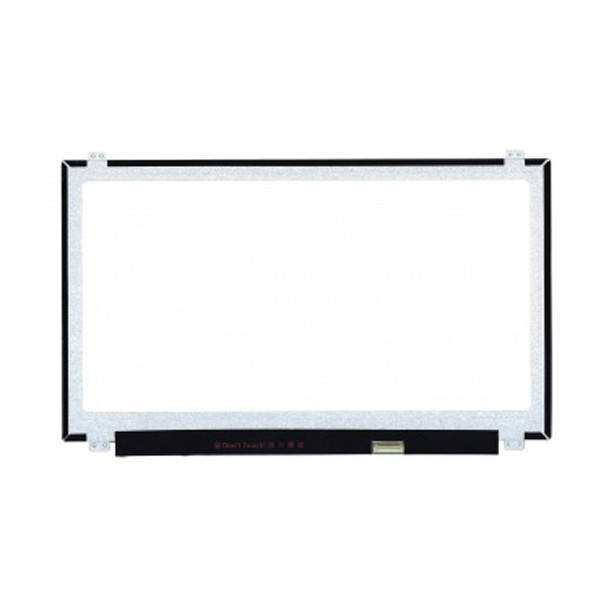

B156HAN07.1 HW2A LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
B156HAN07.1 HW2A LCD Panel Shipping and Package :
B156HAN07.1 HW2A LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
B156HAN07.1 HW2A LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
B156HAN07.1 HW2A LCD Panel FAQ :
Q: Can I pay my order of B156HAN07.1 HW2A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of B156HAN07.1 HW2A ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of B156HAN07.1 HW2A ?
A: Of course!sample order is welcome !
