15.6 inch LCD Screen Module LP156WD1-TPB1 Lcd Display Panel

Brand Name:	LG Display
Model Number:	LP156WD1-TPB1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP156WD1-TPB1

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(RGB)×900, HD+ 118PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.16(W)×193.59(H) Mm

Support Color:

262K 60%NTSC

Light Source:

WLED, 15K Hours, With LED Driver

Designed For:

Laptop

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

15.6 inch LCD Screen Module LP156WD1-TPB1 Lcd Display Panel

LP156WD1-TPB1 LCD Panel Product details :

Brand	LG Display
Model P/N	LP156WD1-TPB1
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×900, HD+ 118PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	349.8(W)×197.1(H) mm
Outline Dim.	359.3(H)×209.5(V)×5.7(D)mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Min.) (TM)
View Direction	6 o'clock
Response Time	8 (Typ.)(Tr+Td)
Viewing Angle	60/60/50/50 (Min.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 60%NTSC
Light Source	WLED, 15K hours, With LED Driver
Form Style	Wedge (PCBA Bent, T≥5.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Interface Type	eDP (1 Lane) , HBR1 (2.7G/lane) , 30 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

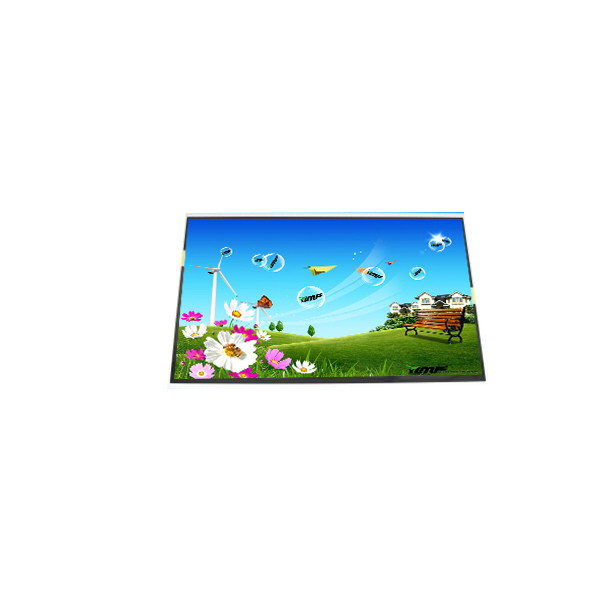

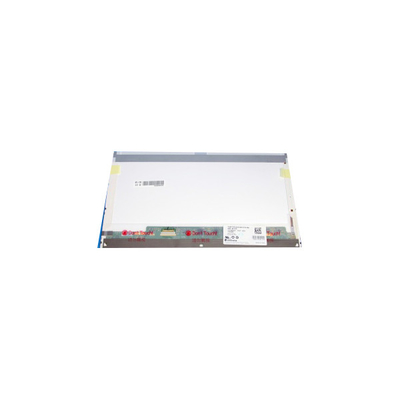

LP156WD1-TPB1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LP156WD1-TPB1 LCD Panel Shipping and Package :

15.6 inch LCD Screen Module LP156WD1-TPB1 Lcd Display Panel 0

LP156WD1-TPB1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LP156WD1-TPB1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LP156WD1-TPB1 LCD Panel FAQ :

Q: How can I trace my order of LP156WD1-TPB1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of LP156WD1-TPB1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LP156WD1-TPB1 via credit card ?

A: Yes!you can use your credit card through your Paypal account
