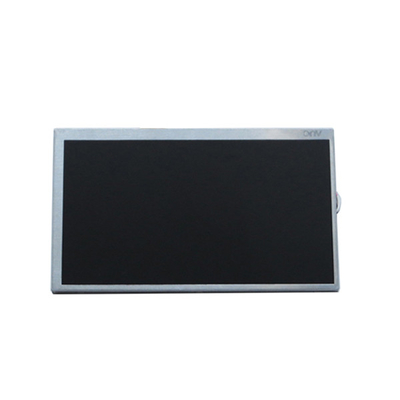

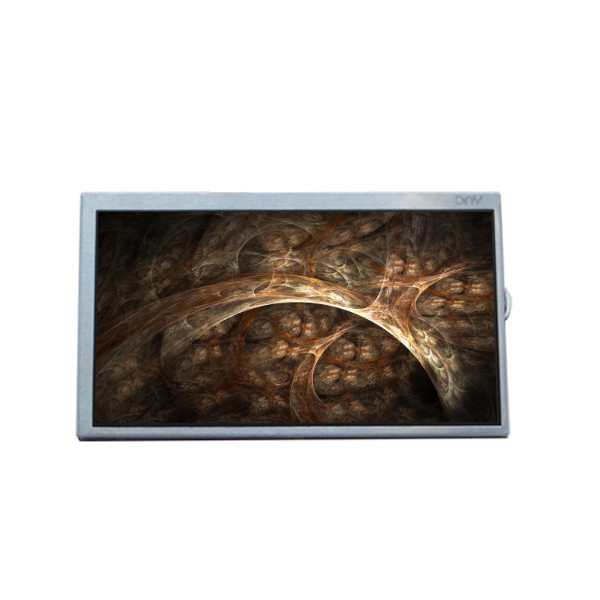

A121EW02 V0 12.1 inch 1280*800 LCD Screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A121EW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A121EW02 V0 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 261.12(W)×163.2(H) Mm |
| Support Color: | 262K 69%NTSC | Light Source: | 4 PcsCCFL, No Driver |
| Designed For: | Industrial、Gaming | Frame Rate: | 60Hz |
Product Description
A121EW02 V0 12.1 inch 1280*800 LCD Screen for Industrial.
A121EW02 V0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A121EW02 V0 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 262.8(W)×164.8(H) mm |
| Outline(mm) | 278.2 × 184× 14.1 (H×V×D) |
| Treatment | - |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (TM) |
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥10) |
| Response | 12/18 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 69%NTSC |
| Backlight | 4 pcsCCFL, No Driver |
| Mass | 750g (Typ.) |
| Used for | Industrial,Gaming |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 70 °C |
