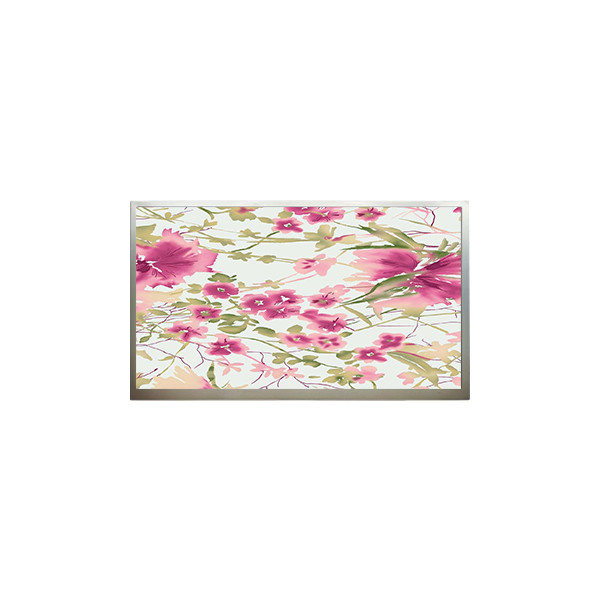

N133I6-P0A 13.3 inch 1366*768 LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | N133I6-P0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N133I6-P0A | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1280(RGB)×800, WXGA 113PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 286.08(W)×178.8(H) Mm |
| Support Color: | 262K 47%NTSC | Light Source: | No B/L, With LED Driver |
| Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
N133I6-P0A 13.3 inch 1366*768 LCD Panel Display
N133I6-P0A LCD Panel Product details :
| Brand | CMO |
| Model P/N | N133I6-P0A |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1280(RGB)×800, WXGA 113PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 286.08(W)×178.8(H) mm |
| Bezel Opening | - |
| Outline Size | 294.44(W)×188.5(H)×0.87(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Glass Depth | 0.30+0.30 mm |
| Transmissivity | 7.0% (Typ.)(with Polarizer) |
| Display Colors | 262K 47%NTSC |
| Lamp Type | No B/L, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Built-in 8 source + 3 gate chips |
| Shape Style | - |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
N133I6-P0A LCD Screen Notice:
Part Number Clarification:
Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.
Illustrative Purposes Only:
Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.
LC420WX6-SLA1 LCD Panel Shipping and Package :
N133I6-P0A LCD Screen International Shipping:
Global Shipping Services:
We proudly offer worldwide shipping services. For international customers seeking assistance prior to placing an order, please reach out to us through our information system.
Express Delivery Options:
Should you require expedited delivery, we extend express delivery services to numerous countries and regions. Simply select "Express" during the checkout process. In case the shipping fee isn't automatically displayed, kindly contact us through our information system for prompt assistance.
Australia, New Zealand, and the United States:
Standard Transit Time: 5-12 working days
Express Transit Time: 1-3 working days
Should your item not arrive within the anticipated shipping duration, please promptly get in touch with us via our information system.
Other Global Regions:
Standard Transit Time: 8-15 working days
Rest assured, we're dedicated to ensuring the timely delivery of your orders. However, for regions beyond Australia, New Zealand, and the United States, we acknowledge the following transit times:
Unreceived Shipments:
While we diligently process all orders in accordance with our commitments, certain circumstances beyond our control, such as delays attributable to express delivery services, international local postal systems, or customs inspections, may occur. In such instances, we regretfully cannot assume responsibility for any resulting delays. We appreciate your understanding and patience in such matters.
N133I6-P0A Warranty/Return :
If you have any concerns, we offer a 30 day peace of mind guarantee (refund or exchange).
Defective or damaged items during transportation must be reported within 48 hours of receipt. Contact us through the information system Simply return the purchased item within 30 days of receiving its original (resale) status and packaging for a refund (less postage and packaging) or exchange.
Any defective or incorrect items must be returned within 30 days of receipt. In any case, customers are responsible for paying the return shipping fee. It is recommended that customers obtain proof of postage when they have not received items in rare circumstances.
We offer a three-month warranty for most products, covering only manufacturing defects. This warranty does not cover any damage/improper operation caused by the user.
If the product we provide malfunctions due to manufacturing defects, please contact us through the information system to obtain RMA (Return Authorization) and return instructions. If you return the item, you must return it together with the RMA number and invoice copy, and the reason for the return must be stated.
We can only refund or replace the product when we actually receive the return. All returns will be processed within 5 working days of receipt in our office.
N133I6-P0A LCD Panel FAQ :
Q: How can I trace my order of N133I6-P0A ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of N133I6-P0A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of N133I6-P0A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods N133I6-P0A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Want to Know more details about this product
