LCD Laptop Screen

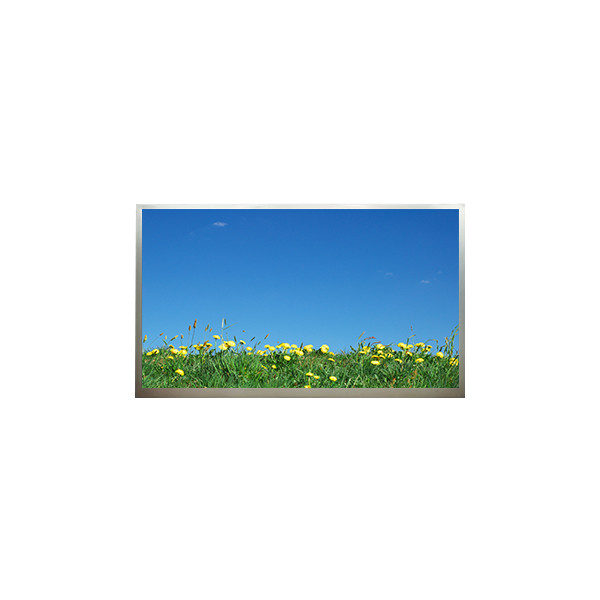

18.4 inch N184H6-P02 40 Pins 1920*1080 LCD Screen Panel

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

18.4 inch N184H6-P02 40 Pins 1920*1080 LCD Screen Panel

Brand Name:	CMO
Model Number:	N184H6-P02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N184H6-P02

Diagonal Size:

18.4"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 119PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.96(W)×230.04(H) Mm

Support Color:

262K 62% NTSC

Light Source:

No B/L , With LED Driver

Designed For:

Laptop

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

18.4 inch N184H6-P02 40 Pins 1920*1080 LCD Screen Panel

N184H6-P02 LCD Panel Product details :

Brand	CMO
Model P/N	N184H6-P02
Diagonal Size	18.4"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.96(W)×230.04(H) mm
Bezel Opening	-
Outline Dim.	417.78(W)×238.725(H)×1.43(D) mm
Luminance	0 cd/m²
View Direction	-
Viewing Angle	45/45/20/45 (Typ.)(CR≥10)
Plate Thickness	0.50+0.50 mm
Support Color	262K 62% NTSC
Form Style	-
Frame Rate	60Hz
Treatment	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	2/6 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Transmittance	5.4% (Typ.)(with Polarizer)
Light Source	No B/L , With LED Driver
Designed For	Laptop
Touch Panel	Without
D-IC Detail	Built-in 8 source COF + 4 gate COG chips
Interface Type	LVDS (2 ch, 6-bit)40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

N184H6-P02 LCD Screen Notice:

Part Number Clarification:

Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.

Illustrative Purposes Only:

Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.

N184H6-P02 LCD Panel Shipping and Package :

18.4 inch N184H6-P02 40 Pins 1920*1080 LCD Screen Panel 0

N184H6-P02 LCD Screen International Shipping:

Global Shipping Services:

We proudly offer worldwide shipping services. For international customers seeking assistance prior to placing an order, please reach out to us through our information system.

Express Delivery Options:

Should you require expedited delivery, we extend express delivery services to numerous countries and regions. Simply select "Express" during the checkout process. In case the shipping fee isn't automatically displayed, kindly contact us through our information system for prompt assistance.

Australia, New Zealand, and the United States:

Standard Transit Time: 5-12 working days

Express Transit Time: 1-3 working days

Should your item not arrive within the anticipated shipping duration, please promptly get in touch with us via our information system.

Other Global Regions:

Standard Transit Time: 8-15 working days

Rest assured, we're dedicated to ensuring the timely delivery of your orders. However, for regions beyond Australia, New Zealand, and the United States, we acknowledge the following transit times:

Unreceived Shipments:

While we diligently process all orders in accordance with our commitments, certain circumstances beyond our control, such as delays attributable to express delivery services, international local postal systems, or customs inspections, may occur. In such instances, we regretfully cannot assume responsibility for any resulting delays. We appreciate your understanding and patience in such matters.

N184H6-P02 Warranty/Return :

If you have any concerns, we offer a 30 day peace of mind guarantee (refund or exchange).

Defective or damaged items during transportation must be reported within 48 hours of receipt. Contact us through the information system Simply return the purchased item within 30 days of receiving its original (resale) status and packaging for a refund (less postage and packaging) or exchange.

Any defective or incorrect items must be returned within 30 days of receipt. In any case, customers are responsible for paying the return shipping fee. It is recommended that customers obtain proof of postage when they have not received items in rare circumstances.

We offer a three-month warranty for most products, covering only manufacturing defects. This warranty does not cover any damage/improper operation caused by the user.

If the product we provide malfunctions due to manufacturing defects, please contact us through the information system to obtain RMA (Return Authorization) and return instructions. If you return the item, you must return it together with the RMA number and invoice copy, and the reason for the return must be stated.

We can only refund or replace the product when we actually receive the return. All returns will be processed within 5 working days of receipt in our office.

N184H6-P02 LCD Panel FAQ :

Q: How long will I receive my goods N184H6-P02 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of N184H6-P02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of N184H6-P02 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .
