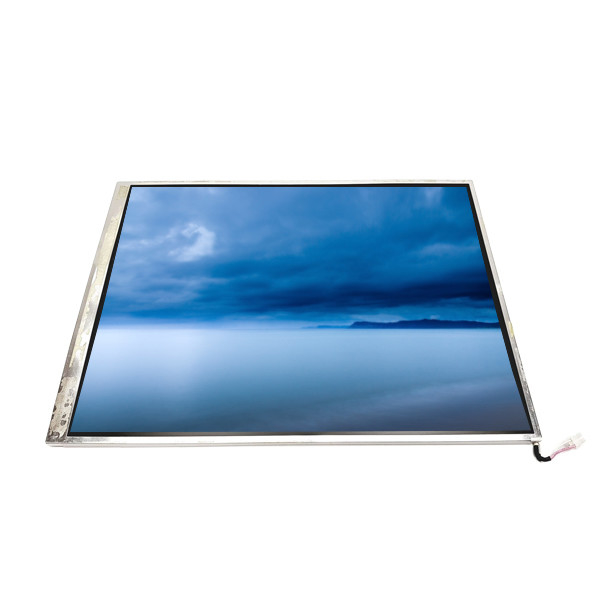

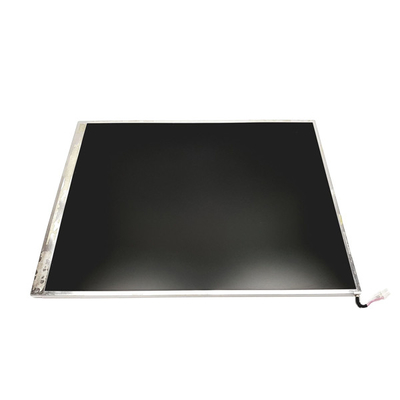

LTM14C506C 14.1 Inch LVDS TFT-LCD Screen For Laptop
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | LTM14C506C |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTM14C506C | Diagonal Size: | 14.1" |
---|---|---|---|
Resolution: | 1024(RGB)×768, XGA 91PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 285.696(W)×214.272(H) Mm | Designed For: | Laptop |
Frame Rate: | 60Hz | Outline Shape: | Wedge (PCBA Bent, T≥5.2mm) |
Product Description
LTM14C506C 14.1 Inch LVDS TFT-LCD Screen For Laptop
LTM14C506C LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | LTM14C506C |
Diagonal Size | 14.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 91PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 285.696(W)×214.272(H) mm |
Bezel Opening | 288.7(W)×217.3(H) mm |
Outline Dim. | 298.5(W)×226.5(H)×6(D) mm |
Luminance | 150 cd/m² (Typ.) |
View Direction | - |
Viewing Angle | 30/30/10/20 (Min.)(CR≥10) |
Support Color | 262K |
Form Style | Wedge (PCBA Bent, T≥5.2mm) |
Frame Rate | 60Hz |
Treatment | Antiglare, Hard coating (3H) |
Contrast Ratio | 150:1 (Min.) (TM) |
Response Time | 50/50 (Max.)(Tr/Td) |
Operating Mode | TN, Normally White, Transmissive |
Light Source | CCFL [1 pcs], W/O Driver |
Designed For | Laptop |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit)14 pins Connector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
LTM14C506C 14.1 Inch LVDS TFT-LCD Screen For Laptop |
LTM14C506C LCD Panel Shipping and Package :
LTM14C506C LCD Panel FAQ :
Q: What happen if the LTM14C506C I receive can't work ?
A: The LTM14C506C will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can You declare my order of lcd panel LTM14C506C at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LTM14C506C ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
