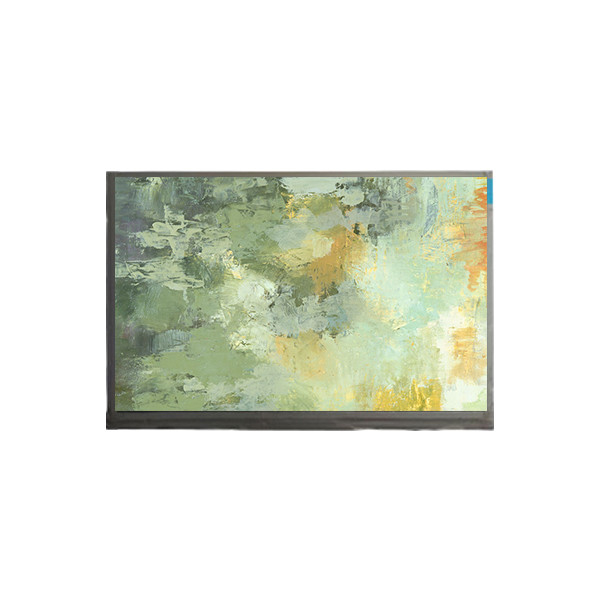

AT070TN00 V.1 7.0 inch 480*234 LCD Screen Display

Brand Name:	Chimei Innolux
Model Number:	AT070TN00 V.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AT070TN00 V.1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL , FOG

Resolution:

480(RGB)×234 76PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×86.58(H) Mm

Color Depth:

Full Color 50% NTSC

Backlight:

No B/L

Used For:

Automotive Display

Signal Type:

TFT Specific Analog RGB , FPC 26 Pins

Supply Ability:

100000 Unit/Units per Month

Product Description

AT070TN00 V.1 7.0 inch 480*234 LCD Screen Display

AT070TN00 V.1 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	AT070TN00 V.1
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL , FOG
Resolution	480(RGB)×234 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×86.58(H) mm
Bezel Opening	-
Outline Dim.	162.5×96.3×1.69 (H×V×D)
Treatment	Antiglare
Luminance	0 cd/m²
Contrast Ratio	300 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/20 (Typ.)(Tr/Td) ms
Viewing Angle	60/60/40/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Glass Depth	0.63+0.63 mm
Transmissivity	7.6% (Typ.)(with Polarizer)
Support Color	Full color 50% NTSC
Light Source	No B/L
Mass	54.0g (Typ.)
Designed For	Automotive Display
Frame Rate	-
Touch Panel	Without
Driver IC list	Built-in COG 2 source + 1 gate chips
Signal Type	TFT Specific Analog RGB , FPC 26 pins
Voltage Supply	(3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C

AT070TN00 V.1 LCD Screen Notice:

Part Number Clarification:

Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.

Illustrative Purposes Only:

Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.

AT070TN00 V.1 LCD Panel Shipping and Package :

AT070TN00 V.1 7.0 inch 480*234 LCD Screen Display 0

AT070TN00 V.1 LCD Screen International Shipping:

Global Shipping Services:

We proudly offer worldwide shipping services. For international customers seeking assistance prior to placing an order, please reach out to us through our information system.

Express Delivery Options:

Should you require expedited delivery, we extend express delivery services to numerous countries and regions. Simply select "Express" during the checkout process. In case the shipping fee isn't automatically displayed, kindly contact us through our information system for prompt assistance.

Australia, New Zealand, and the United States:

Standard Transit Time: 5-12 working days

Express Transit Time: 1-3 working days

Should your item not arrive within the anticipated shipping duration, please promptly get in touch with us via our information system.

Other Global Regions:

Standard Transit Time: 8-15 working days

Rest assured, we're dedicated to ensuring the timely delivery of your orders. However, for regions beyond Australia, New Zealand, and the United States, we acknowledge the following transit times:

Unreceived Shipments:

While we diligently process all orders in accordance with our commitments, certain circumstances beyond our control, such as delays attributable to express delivery services, international local postal systems, or customs inspections, may occur. In such instances, we regretfully cannot assume responsibility for any resulting delays. We appreciate your understanding and patience in such matters.

AT070TN00 V.1 Warranty/Return :

If you have any concerns, we offer a 30 day peace of mind guarantee (refund or exchange).

Defective or damaged items during transportation must be reported within 48 hours of receipt. Contact us through the information system Simply return the purchased item within 30 days of receiving its original (resale) status and packaging for a refund (less postage and packaging) or exchange.

Any defective or incorrect items must be returned within 30 days of receipt. In any case, customers are responsible for paying the return shipping fee. It is recommended that customers obtain proof of postage when they have not received items in rare circumstances.

We offer a three-month warranty for most products, covering only manufacturing defects. This warranty does not cover any damage/improper operation caused by the user.

If the product we provide malfunctions due to manufacturing defects, please contact us through the information system to obtain RMA (Return Authorization) and return instructions. If you return the item, you must return it together with the RMA number and invoice copy, and the reason for the return must be stated.

We can only refund or replace the product when we actually receive the return. All returns will be processed within 5 working days of receipt in our office.

AT070TN00 V.1 LCD Panel FAQ :

Q: Can you tested the AT070TN00 V.1 before shipping ?

A: Of course , our lcd panel AT070TN00 V.1 was Strictly tested before shipping.

Q: How to order AT070TN00 V.1 ?

A: We accept T/T , Paypal , western union .

Q: How long the warranty of the lcd AT070TN00 V.1 ?

A: 90 days .

Q: What happen if the lcd panel AT070TN00 V.1 I received can't work ?

A: AT070TN00 V.1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
