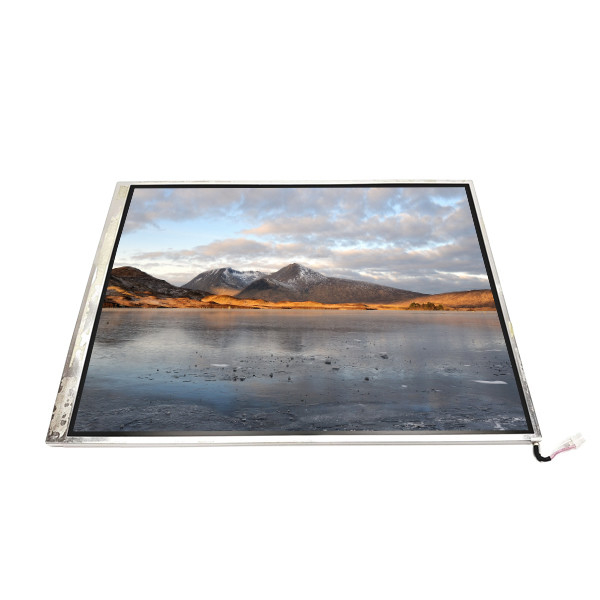

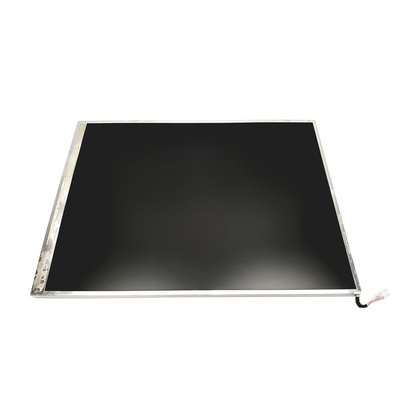

LTM14C421 14.1 Inch 1024*768 LCD Screen Panel Display
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | LTM14C421 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTM14C421 | Diagonal Size: | 14.1" |
---|---|---|---|
Resolution: | 1024(RGB)×768, XGA 91PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 285.696(W)×214.272(H) Mm | Designed For: | Laptop |
Frame Rate: | 60Hz | Form Style: | Wedge (PCBA Bent, T≥5.2mm) |
Product Description
LTM14C421 14.1 Inch 1024*768 LCD Screen Panel Display
LTM14C421 LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | LTM14C421 |
Diagonal Size | 14.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 91PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 285.696(W)×214.272(H) mm |
Bezel Opening | - |
Outline Size | 298.5(W)×226.5(H)(D) mm |
Treatment | - |
Luminance | 150 cd/m² (Typ.) |
Contrast Ratio | - |
Viewing Angle | - |
Response | - |
Good View at | - |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K |
Backlight | 1 pcsCCFL |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit) |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LTM14C421 14.1 Inch 1024*768 LCD Screen Panel Display |
LTM14C421 LCD Panel Shipping and Package :
LTM14C421 LCD Panel FAQ :
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel TOSHIBA LTM14C421 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How do you ship my goods LTM14C421 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LTM14C421 ?
A: 90days warranty .
