LCD Screen Display Panel

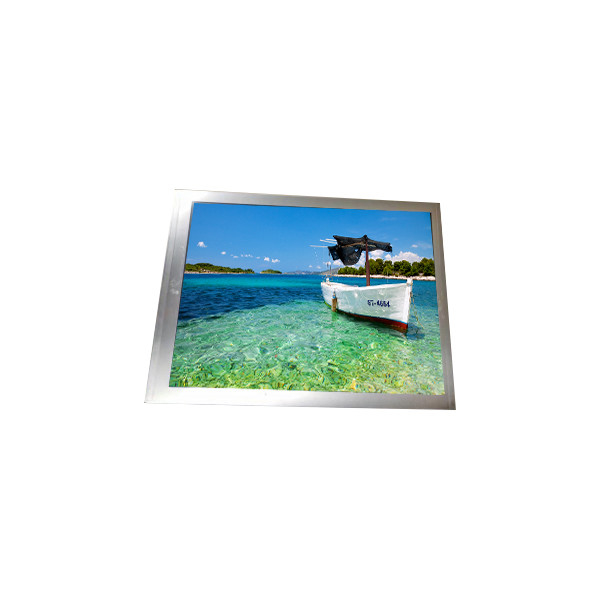

New ZB070TF-09G 7.0 inch 800*480 LCD Panel Screen

All Category

Floor Standing Digital Signage

New ZB070TF-09G 7.0 inch 800*480 LCD Panel Screen

Brand Name:	Innolux
Model Number:	ZB070TF-09G
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ZB070TF-09G

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL , COG

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Outline Dim.:

160 × 101.15 × 1.43 (H×V×D)

Contrast Ratio:

1000:1 (Typ.) (TM)

Response Time:

5/15 (Typ.)(Tr/Td) Ms

Designed For:

Digital Photo Frame /Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Highlight:

ZB070TF-09G

ZB070TF-09G LCD Panel Screen

7.0 inch LCD Panel Screen

Product Description

New ZB070TF-09G 7.0 inch 800*480 LCD Panel Screen

ZB070TF-09G LCD Panel Product details :

Brand	Innolux
Model P/N	ZB070TF-09G
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL , COG
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	-
Outline Dim.	160 × 101.15 × 1.43 (H×V×D)
Treatment	Antiglare
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	5/15 (Typ.)(Tr/Td) ms
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	5.75% (Typ.)
Support Color	16.7M 50% NTSC
Light Source	No B/L
Weight	48.0g (Typ.)
Designed For	Digital Photo Frame /Portable DVD Player
Frame Rate	60Hz
Touch Panel	Without
Driver IC list	Built-in COG EK79713B+EK73202A
Power Supply	3.3/10.4/16/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

ZB070TF-09G LCD Screen Notice:

Part Number Clarification:

Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.

Illustrative Purposes Only:

Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.

ZB070TF-09G LCD Panel Shipping and Package :

New ZB070TF-09G 7.0 inch 800*480 LCD Panel Screen 0

ZB070TF-09G LCD Screen International Shipping:

Global Shipping Services:

We proudly offer worldwide shipping services. For international customers seeking assistance prior to placing an order, please reach out to us through our information system.

Express Delivery Options:

Should you require expedited delivery, we extend express delivery services to numerous countries and regions. Simply select "Express" during the checkout process. In case the shipping fee isn't automatically displayed, kindly contact us through our information system for prompt assistance.

Australia, New Zealand, and the United States:

Standard Transit Time: 5-12 working days

Express Transit Time: 1-3 working days

Should your item not arrive within the anticipated shipping duration, please promptly get in touch with us via our information system.

Other Global Regions:

Standard Transit Time: 8-15 working days

Rest assured, we're dedicated to ensuring the timely delivery of your orders. However, for regions beyond Australia, New Zealand, and the United States, we acknowledge the following transit times:

Unreceived Shipments:

While we diligently process all orders in accordance with our commitments, certain circumstances beyond our control, such as delays attributable to express delivery services, international local postal systems, or customs inspections, may occur. In such instances, we regretfully cannot assume responsibility for any resulting delays. We appreciate your understanding and patience in such matters.

ZB070TF-09G Warranty/Return :

If you have any concerns, we offer a 30 day peace of mind guarantee (refund or exchange).

Defective or damaged items during transportation must be reported within 48 hours of receipt. Contact us through the information system Simply return the purchased item within 30 days of receiving its original (resale) status and packaging for a refund (less postage and packaging) or exchange.

Any defective or incorrect items must be returned within 30 days of receipt. In any case, customers are responsible for paying the return shipping fee. It is recommended that customers obtain proof of postage when they have not received items in rare circumstances.

We offer a three-month warranty for most products, covering only manufacturing defects. This warranty does not cover any damage/improper operation caused by the user.

If the product we provide malfunctions due to manufacturing defects, please contact us through the information system to obtain RMA (Return Authorization) and return instructions. If you return the item, you must return it together with the RMA number and invoice copy, and the reason for the return must be stated.

We can only refund or replace the product when we actually receive the return. All returns will be processed within 5 working days of receipt in our office.

ZB070TF-09G LCD Panel FAQ :

Q: How to make payment of ZB070TF-09G ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of ZB070TF-09G ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of ZB070TF-09G to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90 days warranty .
