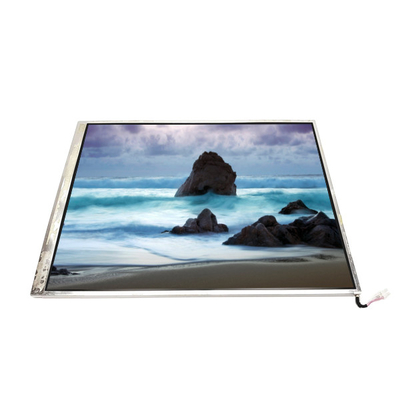

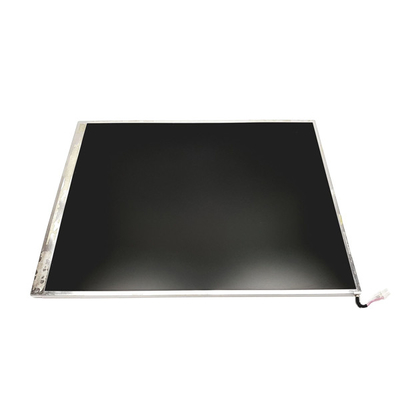

LTM13C420S 13.3 inch 262K 1024*768 TFT-LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSHIBA |
| Model Number: | LTM13C420S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM13C420S | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 96PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 270.336(W)×202.752(H) Mm |
| Used For: | Laptop | Refresh Rate: | 60Hz |
Product Description
LTM13C420S 13.3 inch 262K 1024*768 TFT-LCD Screen Panel
LTM13C420S LCD Panel Product details :
| Brand | TOSHIBA |
| Model P/N | LTM13C420S |
| Diagonal Size | 13.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 270.336(W)×202.752(H) mm |
| Bezel Opening | - |
| Outline Size | 289.8(W)×214.8(H) mm |
| Surface | - |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing Angle | - |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | - |
| Display Colors | 262K |
| Lamp Type | 1 pcsCCFL |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit) |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LTM13C420S 13.3 inch 262K 1024*768 TFT-LCD Screen Panel | |
LTM13C420S LCD Display Project Conditions:
Key Considerations for Installation:
Connector Compatibility:
Before installation, please verify that the connector position of the LTM13C420S LCD display matches the connector on your existing screen. This is crucial to ensure compatibility and functionality once installed.
Handling Instructions:
To maintain the integrity and performance of the LCD display, handle it with care during installation. Avoid excessive force and contact with the screen surface to prevent any potential damage.
Testing Before Full Installation:
It is advisable to connect the LCD display and test it prior to completing the installation process. This preliminary check can help ensure that the display functions as expected without fully securing it into place, making it easier to address any issues if they arise.
Technical Support:
Should you encounter any difficulties during the installation or operation of your LCD display, technical support is available. Contact our support team for guidance and troubleshooting tips to assist with your project.
Additional Information:
Quality Assurance: Every LCD display is thoroughly inspected and tested to guarantee it meets our high standards of quality and performance.
Packaging: The screen will be shipped in protective packaging to ensure it arrives in excellent condition, safeguarded against potential transit damage.
Warranty and Returns: We provide a warranty for the LTM13C420S LCD display, covering any unforeseen defects. Should you need to return the product under warranty conditions, please follow our standard return procedures to facilitate a smooth process.
LTM13C420S LCD Panel Shipping and Package :
LTM13C420S LCD Screen Return Policy:
Incorrect Shipments or Dead on Arrival (DOA):
If you receive an item different from what was ordered, or if the item is non-functional upon arrival (DOA), please contact us immediately. We will address the issue by either sending the correct item or replacing the DOA item at no additional cost to you.
Defective Products:
Products that are found to be defective within the warranty period can be returned for a replacement. We strive to provide quality products and will replace defective items to ensure your satisfaction.
Return Period for Defective Products:
If you identify a defect in the product, you must initiate a return within 30 days from the date your Return Merchandise Authorization (RMA) was issued. Upon receiving the returned product, we can either exchange it for a new one or process a refund, depending on your preference.
Incorrect Purchases:
If you realize that you have purchased the wrong product, please inform us as soon as possible to see if modifications can be made to your order. However, if your order has already been dispatched, you will be responsible for all associated costs. This includes original shipping costs, handling charges, and the cost of return shipping.
LTM13C420S LCD Panel FAQ :
Q: How can I trace my order of LTM13C420S ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of LTM13C420S ?
A: Of course!sample order is welcome !
Q: If I place order now,when will you ship the goods of LTM13C420S ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of LTM13C420S ?
A: Of course!If you make a large order, we will give you a discount.
Contact Us at LTM13C420S LCD Screen Services :
How to Contact Us:
Email: For the quickest response, please send us an email with your inquiry or request. Provide as much detail as possible so we can assist you efficiently.
Phone: You can also reach us by phone during our business hours for immediate assistance or to discuss your needs with one of our experts.
Online Form: Fill out the contact form available on our website with your details, and we will get back to you as soon as possible.
Live Chat: Use our live chat service for real-time support from our customer service team.
We pride ourselves on our professional service and the high quality of our products. Whether you are looking to place a large order or need help finding a specific item, our knowledgeable team is here to help you every step of the way.
Want to Know more details about this product
