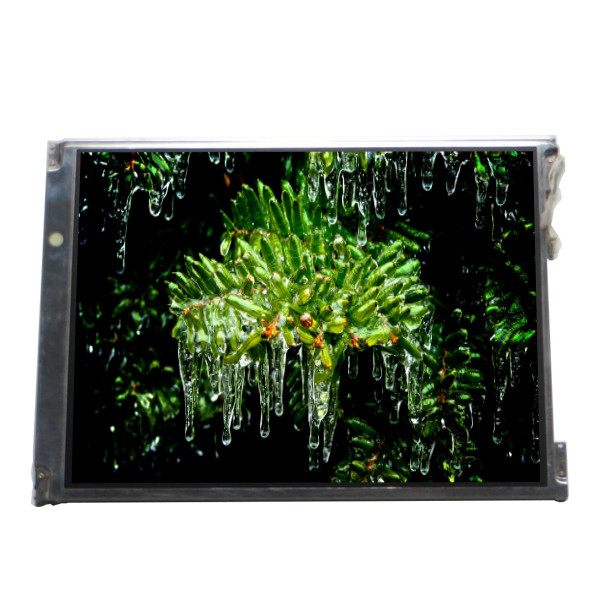

LTM12C283S 12.1 inch LVDS TFT-LCD Screen Display panel
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | LTM12C283S |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTM12C283S | Diagonal Size: | 12.1" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 82PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 246(W)×184.5(H) Mm |
Used For: | Laptop | Refresh Rate: | 60Hz |
Product Description
LTM12C283S 12.1 inch LVDS TFT-LCD Screen Display panel
LTM12C283S LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | LTM12C283S |
Diagonal Size | 12.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 82PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 246(W)×184.5(H) mm |
Bezel Opening | - |
Outline Size | 275(W)×199(H) mm |
Surface | - |
Brightness | 150 cd/m² (Typ.) |
Contrast Ratio | - |
Viewing Angle | - |
Display Mode | TN, Normally White, Transmissive |
Best View on | - |
Response Time | - |
Display Colors | 262K |
Lamp Type | 1 pcsCCFL |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | - |
Application | Laptop |
Signal Interface | LVDS (1 ch, 6-bit) |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
LTM12C283S 12.1 inch LVDS TFT-LCD Screen Display panel |
