A116SW01 V1 11.6 inch 1024*600 TFT LCD Screen for Netbook PC
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A116SW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A116SW01 V1 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 1024(RGB)×600, WSVGA 102PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.05(W)×144(H) Mm |
| Display Colors: | 262K 45%NTSC | Lamp Type: | No B/L |
| Application: | Netbook PC | D-IC Detail: | COG Built-in 2 Source + 2 Gate Chips |
Product Description
A116SW01 V1 11.6 inch 1024*600 TFT LCD Screen for Netbook PC
A116SW01 V1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A116SW01 V1 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 1024(RGB)×600, WSVGA 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.05(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 264.58(W)×154.08(H)×1.26(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | - |
| Support Color | 262K 45%NTSC |
| Light Source | No B/L |
| Form Style | - |
| Designed For | Netbook PC |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 2 source + 2 gate chips |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
A116SW01 V1 LCD Screen Notice:
Part Number Clarification:
Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.

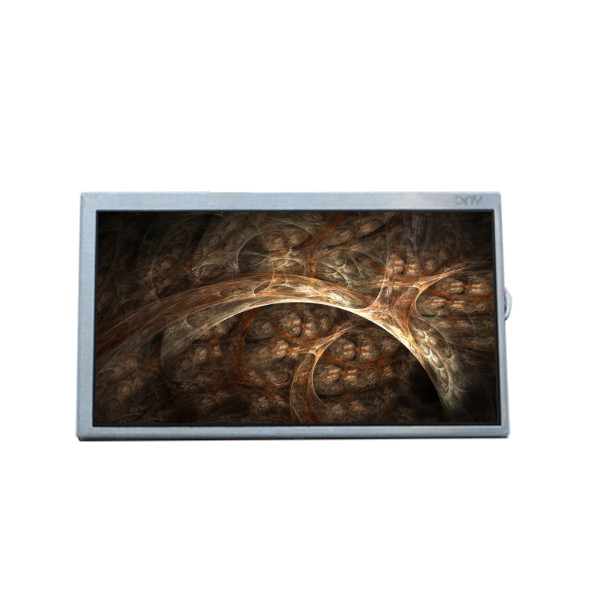

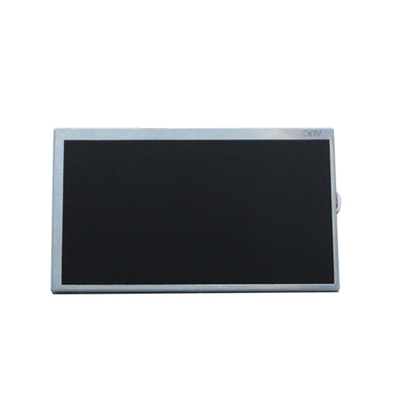

Illustrative Purposes Only:
Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.
