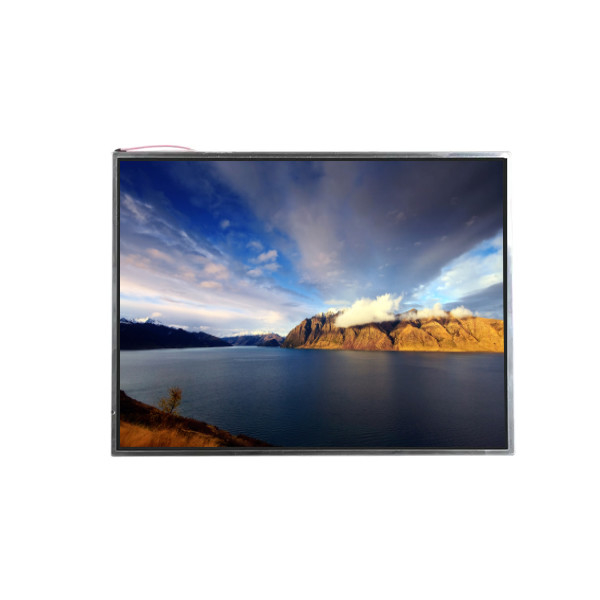

LCD Screen 21.5 inch M215HW01 V9 1920*1080 LCD Panel

Brand Name:	AU Optronics
Model Number:	M215HW01 V9
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M215HW01 V9

Diagonal Size:

21.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

476.64(W)×268.11(H) Mm

Display Colors:

16.7M 72% NTSC

Lamp Type:

4 Pcs CCFL , 50K Hours , Without Driver

Application:

Desktop Monitor

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

LCD Screen 21.5 inch M215HW01 V9 1920*1080 LCD Panel

M215HW01 V9 LCD Panel Product details :

Brand	AU Optronics
Model P/N	M215HW01 V9
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	476.64(W)×268.11(H) mm
Bezel Opening	479.84(W)×271.31(H) mm
Outline Dim.	495.6(W)×302.7(H) ×23.35(D) mm
Treatment	Glare (Haze 0%), Hard coating (4H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	3.8/1.2 (Typ.)(Tr/Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72% NTSC
Light Source	4 pcs CCFL , 50K hours , Without Driver
Weight	2.73Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	75Hz
Touch Panel	Without
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

M215HW01 V9 LCD Screen Notice:

Part Number Clarification:

Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.

Illustrative Purposes Only:

Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.

M215HW01 V9 LCD Panel Shipping and Package :

LCD Screen 21.5 inch M215HW01 V9 1920*1080 LCD Panel 0

M215HW01 V9 LCD Screen International Shipping:

Global Shipping Services:

We proudly offer worldwide shipping services. For international customers seeking assistance prior to placing an order, please reach out to us through our information system.

Express Delivery Options:

Should you require expedited delivery, we extend express delivery services to numerous countries and regions. Simply select "Express" during the checkout process. In case the shipping fee isn't automatically displayed, kindly contact us through our information system for prompt assistance.

Australia, New Zealand, and the United States:

Standard Transit Time: 5-12 working days

Express Transit Time: 1-3 working days

Should your item not arrive within the anticipated shipping duration, please promptly get in touch with us via our information system.

Other Global Regions:

Standard Transit Time: 8-15 working days

Rest assured, we're dedicated to ensuring the timely delivery of your orders. However, for regions beyond Australia, New Zealand, and the United States, we acknowledge the following transit times:

Unreceived Shipments:

While we diligently process all orders in accordance with our commitments, certain circumstances beyond our control, such as delays attributable to express delivery services, international local postal systems, or customs inspections, may occur. In such instances, we regretfully cannot assume responsibility for any resulting delays. We appreciate your understanding and patience in such matters.

M215HW01 V9 Warranty/Return :

If you have any concerns, we offer a 30 day peace of mind guarantee (refund or exchange).

Defective or damaged items during transportation must be reported within 48 hours of receipt. Contact us through the information system Simply return the purchased item within 30 days of receiving its original (resale) status and packaging for a refund (less postage and packaging) or exchange.

Any defective or incorrect items must be returned within 30 days of receipt. In any case, customers are responsible for paying the return shipping fee. It is recommended that customers obtain proof of postage when they have not received items in rare circumstances.

We offer a three-month warranty for most products, covering only manufacturing defects. This warranty does not cover any damage/improper operation caused by the user.

If the product we provide malfunctions due to manufacturing defects, please contact us through the information system to obtain RMA (Return Authorization) and return instructions. If you return the item, you must return it together with the RMA number and invoice copy, and the reason for the return must be stated.

We can only refund or replace the product when we actually receive the return. All returns will be processed within 5 working days of receipt in our office.

M215HW01 V9 LCD Panel FAQ :

Q: How can I trace my order of M215HW01 V9 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of M215HW01 V9 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of M215HW01 V9 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of M215HW01 V9 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
