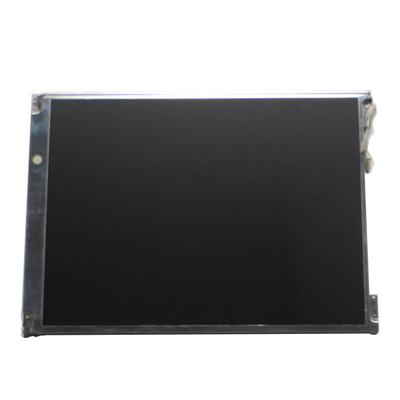

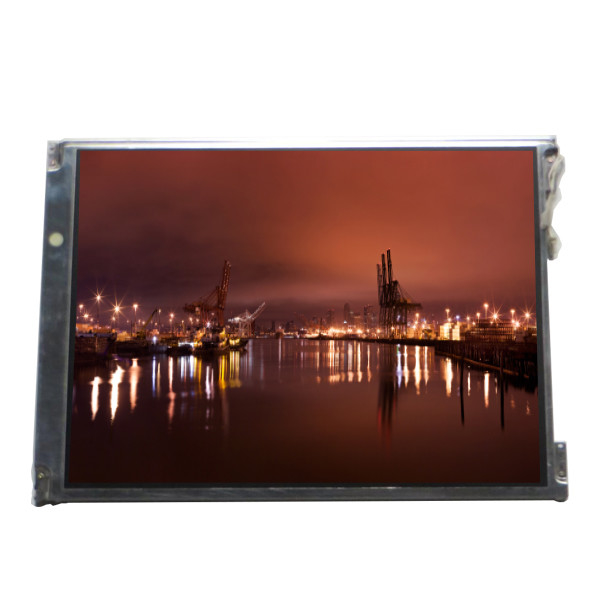

LTM12C278E 12.1 inch TFT-LCD Display panel For Laptop
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | LTM12C278E |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTM12C278E | Diagonal Size: | 12.1" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 82PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 246(W)×184.5(H) Mm |
Display Mode: | TN, Normally White, Transmissive | Application: | Laptop |
Product Description
LTM12C278E 12.1 inch TFT-LCD Display panel For Laptop
LTM12C278E LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | LTM12C278E |
Diagonal Size | 12.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 82PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 246(W)×184.5(H) mm |
Bezel Opening | 249.0(W)×187.5(H) mm |
Outline(mm) | 275.3(W)×199.5(H)×7.5(D) |
Luminance | 160 (Typ.)(cd/m²) |
Viewing Angle | 30/30/10/30 (Min.)(CR≥10) |
Good View at | 6 o'clock |
Color Depth | 262K 44% NTSC |
Outline Shape | - |
Refresh Rate | 60Hz |
Treatment | Antiglare, Hard coating (3H) |
Contrast Ratio | 100 : 1 (Min.) (TM) |
Work Mode | TN, Normally White, Transmissive |
Response | 50/50 (Max.)(Tr/Td) ms |
Backlight | 1 pcs CCFL, No Driver |
Used for | Laptop |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), 20 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LTM12C278E 12.1 inch TFT-LCD Display panel For Laptop |
LTM12C278E LCD Panel Shipping and Package :
LTM12C278E LCD Screen Return Policy:
Q: If I place order now,when will you ship the goods of LTM12C278E ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods LTM12C278E ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LTM12C278E ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LTM12C278E ?
A: Of course!If you make a large order, we will give you a discount.
Contact Us at LTM12C278E LCD Screen Services :
