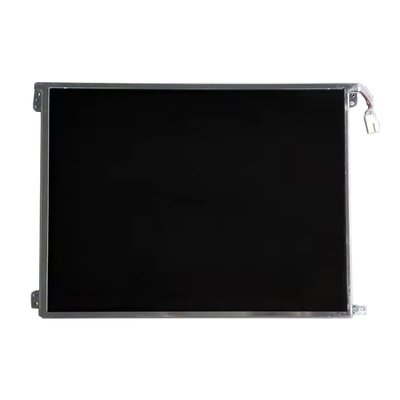

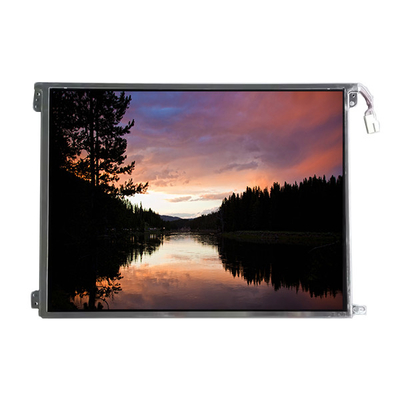

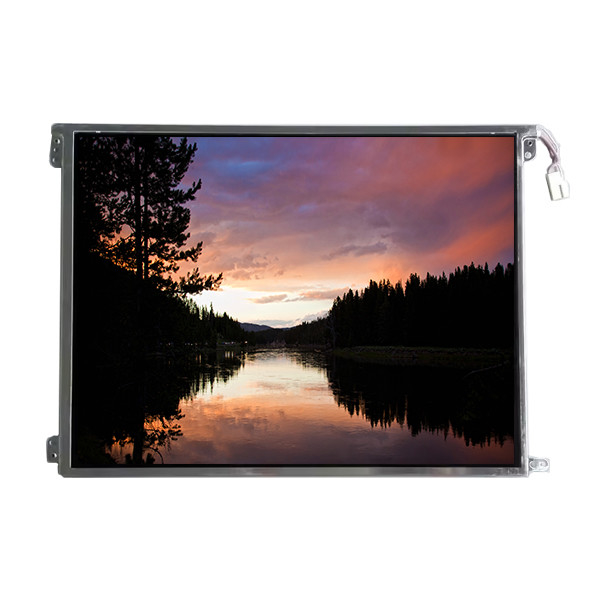

LTM10C348U 10.4 inch 800*600 LVDS TFT LCD Screen Module
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | LTM10C348U |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTM10C348U | Diagonal Size: | 10.4" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 96PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 211.2(W)×158.4(H) Mm |
Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
LTM10C348U 10.4 inch 800*600 LVDS TFT LCD Screen Module
LTM10C348U LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | LTM10C348U |
Diagonal Size | 10.4" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 96PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 211.2(W)×158.4(H) mm |
Bezel Opening | 217.2(W)×164.7(H) mm |
Outline (mm) | 238.6×173.2×5.2 (H×V×D) |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 130 cd/m² (Typ.) |
Contrast Ratio | 250 : 1 (Typ.) (TM) |
Viewing Angle | 30/30/10/20 (Typ.)(CR≥10) |
Response | 50/50 (Max.)(Tr/Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K |
Backlight | 1 pcsCCFL, No Driver |
Outline Shape | - |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), Connector14 pins |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LTM10C348U 10.4 inch 800*600 LVDS TFT LCD Screen Module |
LTM10C348U LCD Panel Shipping and Package :
LTM10C348U LCD Panel FAQ :
Q: Do you accept sample orders for LTM10C348U ?
A: Of course!sample order is welcome !
Q: How long is the warranty of LTM10C348U ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LTM10C348U ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order LTM10C348U now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
