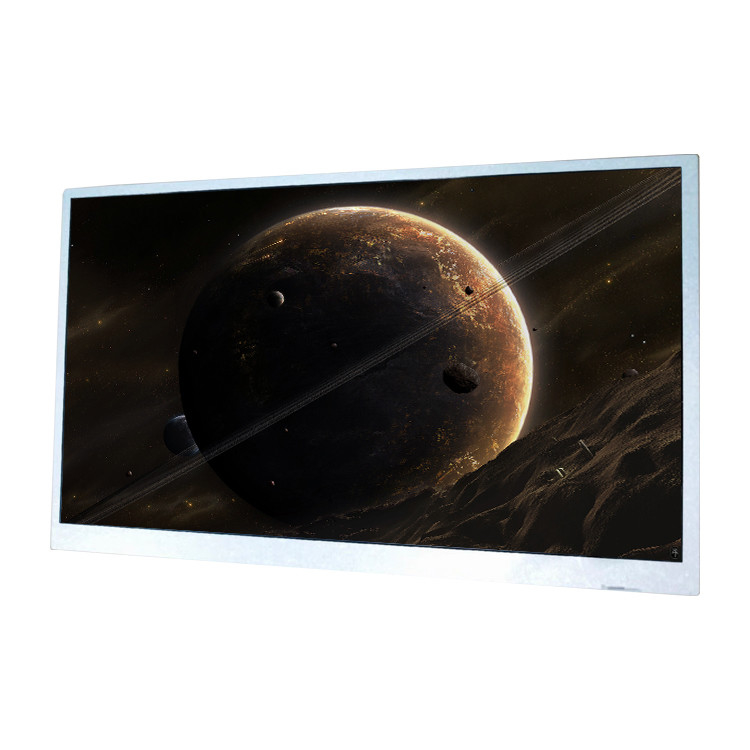

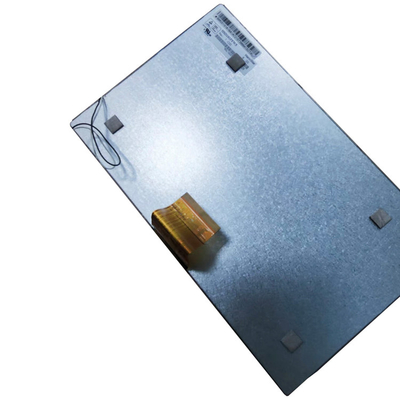

10.1 inch LCD panel Module HSD101PFW5-B10-0220 for Netbook PC
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PFW5-B10-0220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD101PFW5-B10-0220 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Outline Dim.: | 230.83(W)×135.3(H)×1.23(D) Mm | Luminance: | 0 Cd/m² |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Response Time: | 16 (Typ.)(Tr+Td) |
| Designed For: | Netbook PC | D-IC Detail: | COG Built-in HX8282-A06 + HX8696A |
| Highlight: | 10.1 inch LCD panel Module,LCD panel Module HSD101PFW5-B10-0220 |
||
Product Description
10.1 inch LCD panel Module HSD101PFW5-B10-0220 for Netbook PC
HSD101PFW5-B10-0220 LCD Panel Product details :
| HannStar LCD Screen HSD101PFW5-B10-0220 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101PFW5-B10-0220 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL , COG |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Outline(mm) | 230.83 × 135.3 × 1.23 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 5.88% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 45% NTSC |
| Backlight | No B/L |
| Used for | Netbook PC |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG HX8282-A06 + HX8696A |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 10.1 inch LCD panel Module HSD101PFW5-B10-0220 for Netbook PC | |
HSD101PFW5-B10-0220 LCD Display Project Conditions:
Key Considerations for Installation:
Connector Compatibility:
Before installation, please verify that the connector position of the HSD101PFW5-B10-0220 LCD display matches the connector on your existing screen. This is crucial to ensure compatibility and functionality once installed.
Handling Instructions:
To maintain the integrity and performance of the LCD display, handle it with care during installation. Avoid excessive force and contact with the screen surface to prevent any potential damage.
Testing Before Full Installation:
It is advisable to connect the LCD display and test it prior to completing the installation process. This preliminary check can help ensure that the display functions as expected without fully securing it into place, making it easier to address any issues if they arise.
Technical Support:
Should you encounter any difficulties during the installation or operation of your LCD display, technical support is available. Contact our support team for guidance and troubleshooting tips to assist with your project.
Additional Information:
Quality Assurance: Every LCD display is thoroughly inspected and tested to guarantee it meets our high standards of quality and performance.
Packaging: The screen will be shipped in protective packaging to ensure it arrives in excellent condition, safeguarded against potential transit damage.
Warranty and Returns: We provide a warranty for the HSD101PFW5-B10-0220 LCD display, covering any unforeseen defects. Should you need to return the product under warranty conditions, please follow our standard return procedures to facilitate a smooth process.
HSD101PFW5-B10-0220 LCD Panel Shipping and Package :
HSD101PFW5-B10-0220 LCD Screen Return Policy:
Incorrect Shipments or Dead on Arrival (DOA):
If you receive an item different from what was ordered, or if the item is non-functional upon arrival (DOA), please contact us immediately. We will address the issue by either sending the correct item or replacing the DOA item at no additional cost to you.
Defective Products:
Products that are found to be defective within the warranty period can be returned for a replacement. We strive to provide quality products and will replace defective items to ensure your satisfaction.
Return Period for Defective Products:
If you identify a defect in the product, you must initiate a return within 30 days from the date your Return Merchandise Authorization (RMA) was issued. Upon receiving the returned product, we can either exchange it for a new one or process a refund, depending on your preference.
Incorrect Purchases:
If you realize that you have purchased the wrong product, please inform us as soon as possible to see if modifications can be made to your order. However, if your order has already been dispatched, you will be responsible for all associated costs. This includes original shipping costs, handling charges, and the cost of return shipping.
HSD101PFW5-B10-0220 LCD Panel FAQ :
Q: What happen if the HSD101PFW5-B10-0220 I receive can't work ?
A: The HSD101PFW5-B10-0220 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can You declare my order of lcd panel HSD101PFW5-B10-0220 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of HSD101PFW5-B10-0220 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
