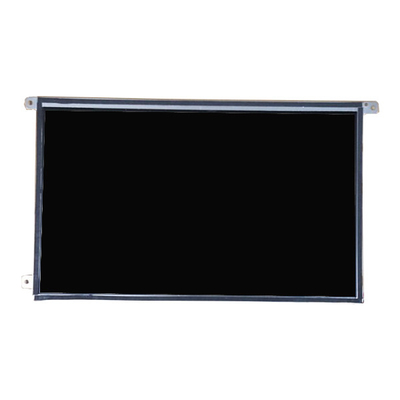

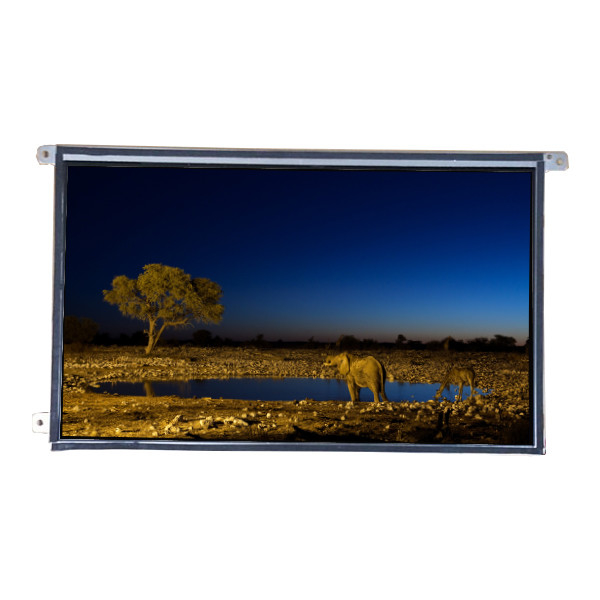

LTM09C362W 8.9 inch LVDS 262K TFT-LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSHIBA |
| Model Number: | LTM09C362W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM09C362W | Diagonal Size: | 8.9" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 195.072(W)×113.4(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Used For: | Laptop |
Product Description
LTM09C362W 8.9 inch LVDS 262K TFT-LCD Screen Panel
LTM09C0362W LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LTM09C362W |
| Diagonal Size | 8.9" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 195.072(W)×113.4(H) mm |
| Bezel Opening | 200.0(W)×118.4(H) mm |
| Outline Dim. | 219.5(H)×134.5(V)×5.2(D)mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 130 cd/m² (Typ.) |
| Contrast Ratio | 100:1 (Min.) (TM) |
| View Direction | - |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | CCFL [1 pcs], W/O Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 14 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTM09C362W 8.9 inch LVDS 262K TFT-LCD Screen Panel | |
LTM09C0362W LCD Screen Payment and Taxation:
We offer a variety of convenient payment methods to facilitate your purchase, including PayPal, Alibaba Sinosure orders, bank transfers, and more.
Please note that products shipped outside of China may be subject to import tariffs, taxes, and fees imposed by the destination country's customs authorities. These additional costs are not included in the price or shipping cost of the product and are solely the responsibility of the consignee.
In the event that an order is not confirmed in a timely manner, it will be automatically cancelled after 7 working days. We encourage prompt confirmation to ensure smooth processing of your order.
LTM09C0362W LCD Panel Shipping and Package :
LTM09C0362W LCD Screen Item Not Received:
At our end, we meticulously handle all orders in strict accordance with our commitments. However, it's imperative to note that once the package leaves our facility, its transit is entrusted to third-party courier services. If, due to unforeseen circumstances such as delays stemming from the courier's operational constraints, issues with international or local postal services, or thorough inspections by international customs authorities, your item experiences a delay, we regret to inform you that we cannot be held liable for such delays. Please rest assured that we are committed to assisting you to the best of our abilities within the confines of our control.
LTM09C0362W LCD Screen Warranty / Returns:
At our establishment, we prioritize your satisfaction and offer a 30-day peace of mind guarantee, allowing for either a refund or exchange should any concerns arise.
In the unfortunate event of receiving a defective or damaged item during transit, we kindly request that you report it to us within 48 hours of receipt.
To initiate a return or exchange, simply ensure that the purchased item(s) are returned within 30 days of receipt, maintaining its original (re-sellable) condition and packaging. Please note that refunds will be issued minus the cost of Postage & Packaging.
Should you encounter any faulty or incorrect item(s), it is imperative to return them within 30 days of receipt. The cost of return postage rests upon the customer, and we advise obtaining proof of postage in the rare event of non-receipt.
Most of our items come with a three-month warranty, covering manufacturing defects exclusively. This warranty does not extend to damage or mishandling caused by the user.
In the event that an item supplied by us develops a fault due to a manufacturing defect, we encourage you to reach out to us via the eBay messaging system for RMA (return merchandise authorization) and further return instructions. Please ensure that the returned item is accompanied by the RMA number, a copy of the invoice, and a clear statement outlining the reason for return.
Please note that refunds or replacements will only be processed upon receipt of the returned item. All returns are diligently processed within 5 working days of receipt at our office.
LTM09C0362W LCD Panel FAQ :
Q: How long will I receive my goods of lcd LTM09C0362W ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: When will my order LTM09C0362W ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
