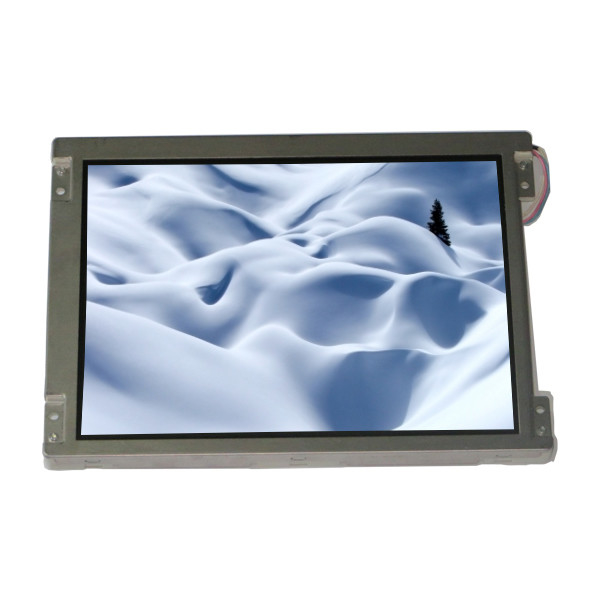

LTM08C351F 8.4 inch 800*600 TFT-LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | TOSHIBA |
Model Number: | LTM08C351F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTM08C351F | Diagonal Size: | 8.4" |
---|---|---|---|
Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 119PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 170.4(W)×127.8(H) Mm |
Brightness: | 350 Cd/m² (Typ.) | Display Colors: | 262K |
Display Mode: | TN, Normally White, Transmissive | Application: | Industrial |
Product Description
LTM08C351F 8.4 inch 800*600 TFT-LCD Screen Display
LTM08C351F LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | LTM08C351F |
Diagonal Size | 8.4" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 119PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 170.4(W)×127.8(H) mm |
Bezel Opening | 173.0(W)×130.8(H) mm |
Outline Size | 199.5(W)×149.5(H) mm |
Brightness | 350 cd/m² (Typ.) |
Viewing Angle | - |
Best View on | - |
Display Colors | 262K |
Frequency | - |
Weight | - |
Surface | - |
Contrast Ratio | 300:1 (Typ.) (TM) |
Display Mode | TN, Normally White, Transmissive |
Response Time | - |
Lamp Type | 2 pcs CCFL, Without Driver |
Touch Screen | Without |
Application | Industrial |
Signal Interface | Parallel RGB (1 ch, 6-bit), 30 pinsConnector |
Input Voltage | 3.3V (Typ.)(VDD) |
Environment | Operating Temp.: -10 ~ 65 °C ;Storage Temp.: -20 ~ 70 °C |
LTM08C351F 8.4 inch 800*600 TFT-LCD Screen Display |
LTM08C351F LCD Panel Shipping and Package :
LTM08C351F LCD Panel FAQ :
Q: Can You declare my order of LTM08C351F to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of LTM08C351F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LTM08C351F ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
