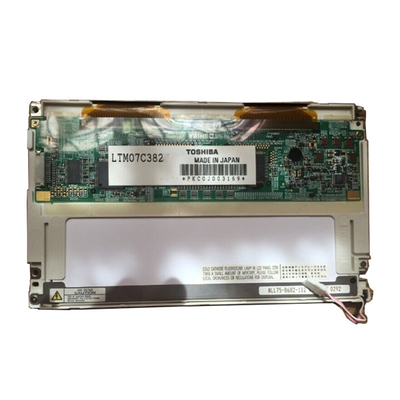

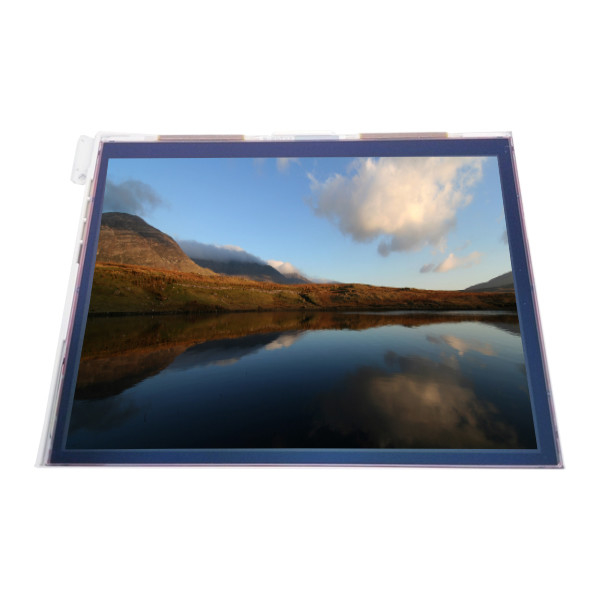

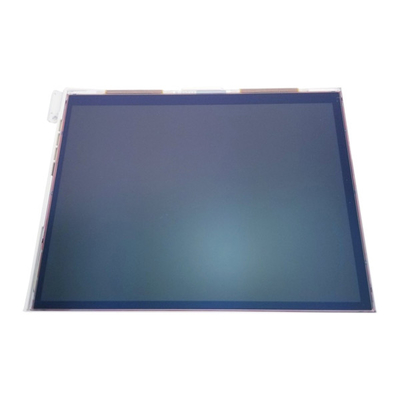

LTM07C382 7.0 inch 262K TFT-LCD Screen Module
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTM07C382 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTM07C382 | Diagonal Size: | 7.0" |
---|---|---|---|
Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
Work Mode: | TN, Normally White, Transmissive | Pixel Format: | RGB Vertical Stripe |
Display Colors: | 262K | Application: | Portable DVD Player |
Product Description
LTM07C382 7.0 inch 262K TFT-LCD Screen Module
LTM07C382 LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | LTM07C382 |
Diagonal Size | 7.0" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1024(RGB)×600, WSVGA 169PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 153.6(W)×90(H) mm |
Bezel Opening | - |
Outline Dim. | 182(H)×108.5(V) mm |
Treatment | - |
Luminance | 150 cd/m² (Typ.) |
Contrast Ratio | - |
View Direction | - |
Response Time | - |
Viewing Angle | - |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K |
Light Source | CCFL [1 pcs] |
Weight | 150g |
Designed For | Portable DVD Player |
Frame Rate | - |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit) |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
LTM07C382 7.0 inch 262K TFT-LCD Screen Module |
LTM07C382 LCD Panel Shipping and Package :
LTM07C382 LCD Panel FAQ :
Q: How long is the warranty of LTM07C382 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: What happen if the LTM07C382 I receive can't work ?
A: The LTM07C382 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can You declare my order of lcd panel LTM07C382 at a very low value ?
A: Yes , we can . pls inform us before shipping .
