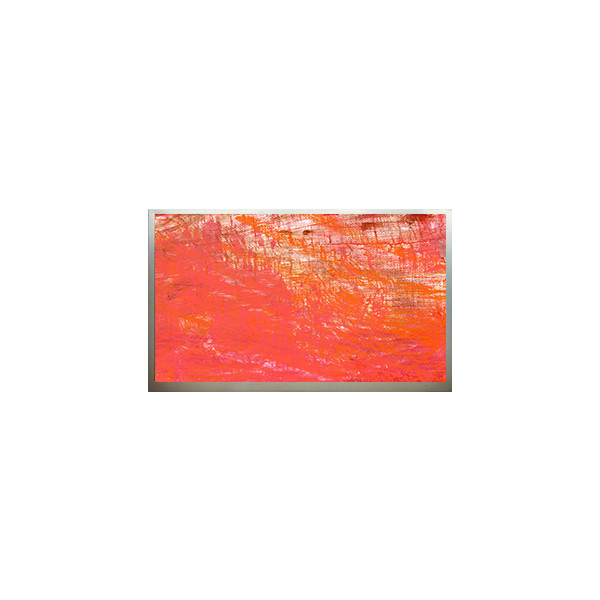

19.0 inch M190Z1-L03 1680*1050 LCD display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M190Z1-L03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M190Z1-L03 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1680(RGB)×1050, WSXGA+ 104PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 408.24(W)×255.15(H) Mm |
| Bezel Opening: | 412.24(W)×259.15(H) Mm | Outline Size: | 428(W)×278(H)×16.7(D) Mm |
| Display Colors: | 16.7M 72%NTSC | Application: | Desktop Monitor |
Product Description
19.0 inch M190Z1-L03 1680*1050 LCD display panel
M190Z1-L03 LCD Panel Product details :
| Brand | CMO |
| Model P/N | M190Z1-L03 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 104PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.24(W)×259.15(H) mm |
| Outline Size | 428(W)×278(H)×16.7(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 0.7/2.3 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 4 pcsCCFL, 40K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.84/1.88Kgs (Typ./Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
M190Z1-L03 LCD Panel Shipping and Package :
M190Z1-L03 LCD Screen Shipping Time:
Typically, the goods will be dispatched within 3 working days post payment confirmation. However, the actual shipping duration varies based on your country of residence, subject to your country's customs procedures. To estimate the delivery time frame according to your location, kindly refer to our delivery predictions. In the event that the merchandise has not been received within the anticipated delivery period, we encourage you to promptly reach out to us. Our dedicated team will promptly address any concerns and work towards resolving the issue at the earliest opportunity.
M190Z1-L03 LCD Screen Returns:
At our core, we prioritize providing exceptional service to our valued customers. Hence, we offer a refund policy that ensures your satisfaction. Should you choose to return the items within 15 days of receiving them, we will promptly process your refund, regardless of the reason. It's important to note that the items must be returned in their original condition to qualify for a refund.
Please be advised that any damage or loss incurred during the return process is the responsibility of the buyer. In such cases, where items are returned in a damaged or lost state, we cannot offer a full refund. We encourage buyers to pursue claims with the logistic company to recover any associated costs of damage or loss.
Your trust and satisfaction are paramount to us, and we strive to address any concerns with transparency and fairness throughout the return process.
M190Z1-L03 LCD Screen Reminder:
Kindly note that our listed price does not encompass any customs taxes or fees applicable at the destination. Whether you will incur taxes or fees upon clearance through destination customs hinges upon the regulations of the respective country. We advise customers to anticipate potential taxes or fees and to be prepared for payment upon customs clearance. It's imperative to familiarize yourself with the customs laws and regulations of your destination country to ensure a smooth and hassle-free import process.
M190Z1-L03 LCD Panel FAQ :
Q: How can I trace my order of M190Z1-L03 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods M190Z1-L03 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of M190Z1-L03 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of M190Z1-L03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
