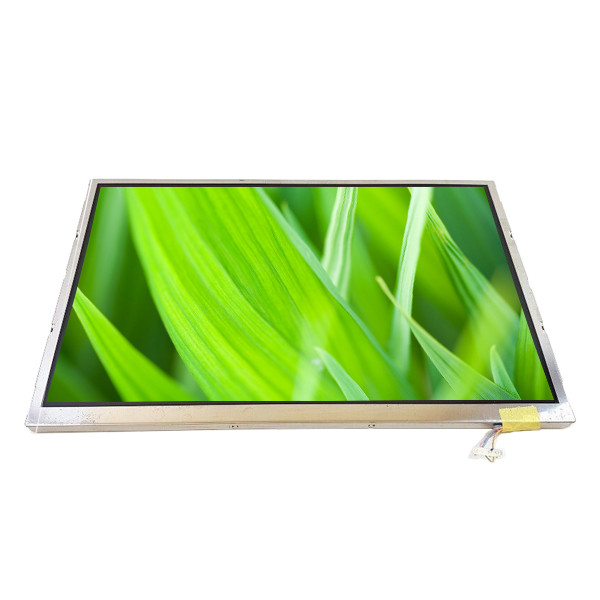

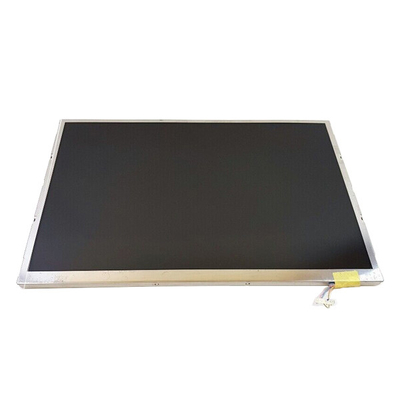

LTD154LX0S (Z) 15.4 inch 1280*800 TFT-LCD Screen Module
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD154LX0S (Z) |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD154LX0S (Z) | Diagonal Size: | 15.4" |
---|---|---|---|
Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 97PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 332.2(W)×207.6(H) Mm |
Display Mode: | TN, Normally White, Transmissive | Application: | Laptop |
Product Description
LTD154LX0S (Z) 15.4 inch 1280*800 TFT-LCD Screen Module
LTD154LX0S (Z) LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD154LX0S (Z) |
Diagonal Size | 15.4" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 97PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 332.2(W)×207.6(H) mm |
Bezel Opening | - |
Outline Dim. | 344(H)×243.5(V)×6.5(D)mm |
Treatment | - |
Luminance | 190 cd/m² (Typ.) |
Contrast Ratio | 400:1 (Min.) (TM) |
View Direction | - |
Response Time | 40 (Max.)(Tr/Td) |
Viewing Angle | - |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K |
Light Source | CCFL [1 pcs], W/O Driver |
Form Style | Wedge (PCBA Bent, T≥5.2mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit), 30 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
LTD154LX0S (Z) 15.4 inch 1280*800 TFT-LCD Screen Module |
LTD154LX0S (Z) LCD Panel Shipping and Package :
LTD154LX0S (Z) LCD Panel FAQ :
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of LTD154LX0S (Z) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of LTD154LX0S (Z) ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LTD154LX0S (Z) ?
A: Of course!If you make a large order, we will give you a discount.
