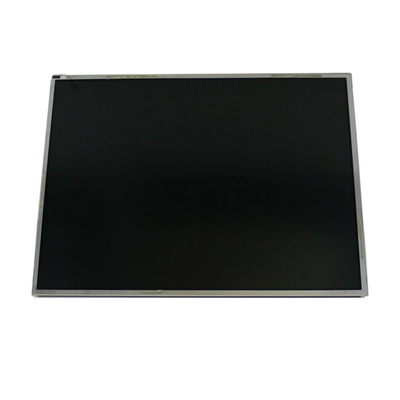

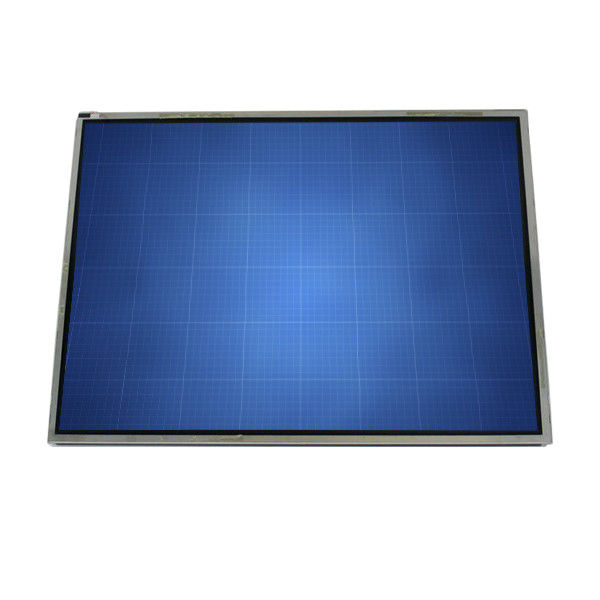

LTD141LA2S 14.1 inch 1024*768 TFT-LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTD141LA2S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTD141LA2S | Diagonal Size: | 14.1" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 91PPI |
| Active Area: | 285.696(W)×214.272(H) Mm | Display Colors: | 262K |
| Designed For: | Laptop | Frame Rate: | 60Hz |
| Mode: | TN, Normally White, Transmissive | Signal Type: | LVDS (1 Ch, 6-bit), 30 Pins Connector |
Product Description
LTD141LA2S 14.1 inch 1024*768 TFT-LCD Screen Panel
LTD141LA2S LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LTD141LA2S |
| Diagonal Size | 14.1" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 285.696(W)×214.272(H) mm |
| Bezel Opening | 289.4(W)×218.0(H) mm |
| Outline Size | 299(W)×227.8(H)×5.5(D) mm |
| Treatment | - |
| Luminance | 170 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | 15/20 (Typ.)(Tr+Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 1 pcsCCFL, No Driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 30 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LTD141LA2S 14.1 inch 1024*768 TFT-LCD Screen Panel | |
LTD141LA2S LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
LTD141LA2S LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
LTD141LA2S LCD Panel Shipping and Package :
LTD141LA2S LCD Panel FAQ :
Q: How do you ship my goods LTD141LA2S ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen LTD141LA2S at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LTD141LA2S ?
A: 90 days warranty .
LTD141LA2S LCD Display Service Hours:
Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:
Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM
However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.
Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.
Thank you for your trust in our products and services. We look forward to serving you.
