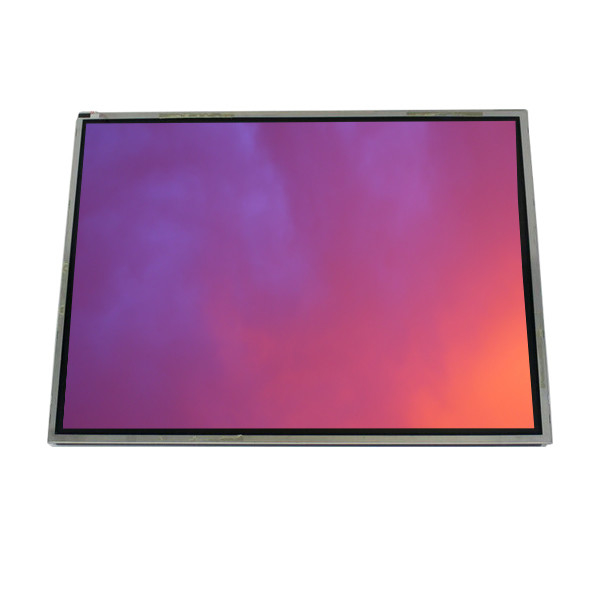

LTD141LA1SG 14.1 inch 1024*768 TFT-LCD Screen Panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD141LA1SG |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD141LA1SG | Diagonal Size: | 14.1" |
---|---|---|---|
Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 91PPI |
Active Area: | 285.696(W)×214.272(H) Mm | Display Colors: | 262K |
Designed For: | Laptop | Frame Rate: | 60Hz |
Mode: | TN, Normally White, Transmissive | Signal Type: | LVDS (1 Ch, 6-bit), 30 Pins Connector |
Product Description
LTD141LA1SG 14.1 inch 1024*768 TFT-LCD Screen Panel
LTD141LA1SG LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD141LA1SG |
Diagonal Size | 14.1" |
Panel Type | LTPS TFT-LCD, CELL, FOB |
Resolution | 1024(RGB)×768, XGA 91PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 285.696(W)×214.272(H) mm |
Bezel Opening | - |
Luminance | 0 (cd/m²) |
Viewing Angle | - |
Good View at | - |
Color Depth | 262K |
Outline Shape | - |
Refresh Rate | 60Hz |
Contrast Ratio | 300 : 1 (Typ.) (TM) |
Work Mode | TN, Normally White, Transmissive |
Response | 15/20 (Typ.)(Tr/Td) ms |
Backlight | No B/L |
Used for | Laptop |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LTD141LA1SG 14.1 inch 1024*768 TFT-LCD Screen Panel |
LTD141LA1SG LCD Panel Shipping and Package :
LTD141LA1SG LCD Panel FAQ :
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen LTD141LA1SG at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LTD141LA1SG ?
A: 90 days warranty .
Q: How do you ship my goods LTD141LA1SG ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
