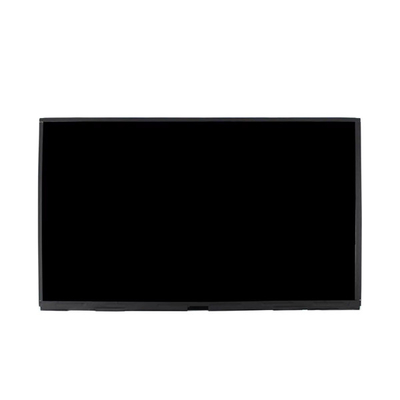

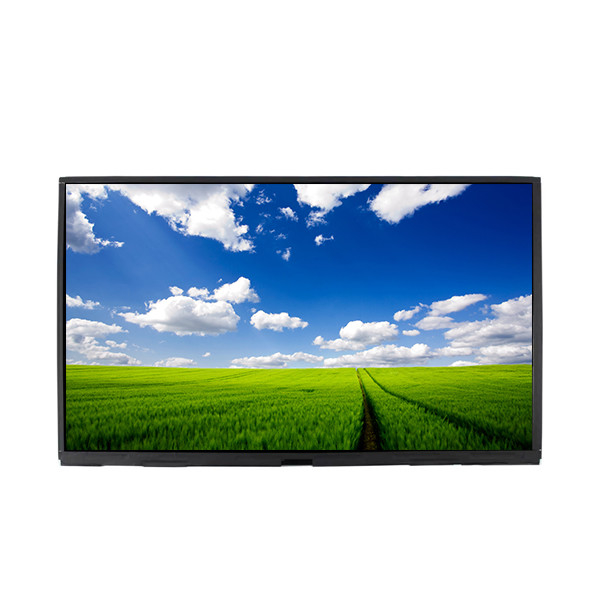

B116XW05 V004 11.6 inch 1366*768 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XW05 V004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XW05 V004 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Support Color: | 262K 45%NTSC | Backlight: | No B/L |
| Used For: | Laptop、Netbook PC | Refresh Rate: | 60Hz |
Product Description
B116XW05 V004 11.6 inch 1366*768 LCD Display Screen
B116XW05 V004 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B116XW05 V004 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Size | 289.34(W)×155.9(H) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Best View on | - |
| Glass Depth | - |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Shape Style | - |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) |
| Transmissivity | 5.3% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Laptop,Netbook PC |
| Driver IC | COGBuilt-in 6 source + 2 gate chips |
| Signal Interface | eDP (1 Lane), 30 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
B116XW05 V004 LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
B116XW05 V004 LCD Panel Shipping and Package :
B116XW05 V004 LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
B116XW05 V004 LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
B116XW05 V004 LCD Panel FAQ :
Q: Do you accept sample orders of B116XW05 V004 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of B116XW05 V004 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of B116XW05 V004 ?
A: The order will be shipped within 2-3 working days after received your payment.
