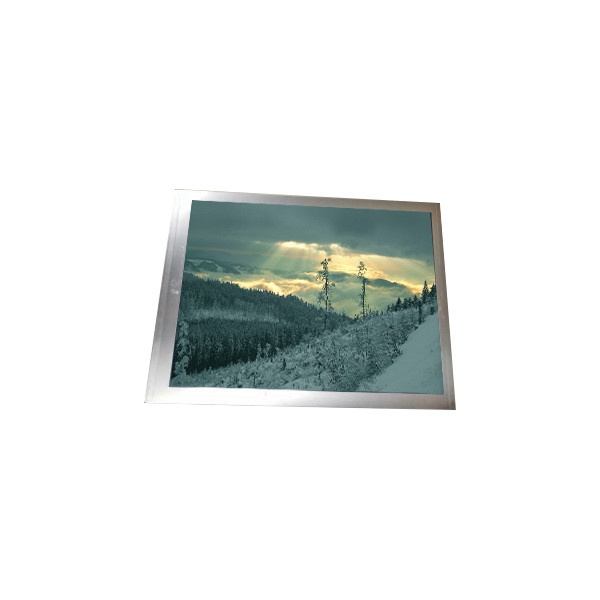

HSD070UDW7-C00 7.0 inch Lcd Panel Monitor 800*480 LCD Screen

Brand Name:	HannStar
Model Number:	HSD070UDW7-C00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD070UDW7-C00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL , Q-CUT (Full Cell)

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Support Color:

16.7M 72% NTSC

Designed For:

Automotive Display

Operating Mode:

IPS Pro, Normally Black, Transmissive

Transmissivity:

13.15% (Typ.)(without Polarizer)

Supply Ability:

100000 Unit/Units per Month

Highlight:

HSD070UDW7-C00

7.0 inch Lcd Panel Monitor

HSD070UDW7-C00 LCD Screen

Product Description

HSD070UDW7-C00 7.0 inch Lcd Panel Monitor 800*480 LCD Screen

HSD070UDW7-C00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD070UDW7-C00
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL , Q-CUT (Full Cell)
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	-
Outline Dim.	159.7(W)×101.5(H) ×0.5(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1300:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Max.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Glass Depth	0.25+0.25 mm
Operating Mode	IPS Pro, Normally Black, Transmissive
Transmissivity	13.15% (Typ.)(without Polarizer)
Support Color	16.7M 72% NTSC
Light Source	No B/L
Weight	-
Designed For	Automotive Display
Frame Rate	-
Touch Panel	Without
Driver IC	COG Built-in RM53021 + RM57020
Environment	Operating Temp.: -35 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C

HSD070UDW7-C00 LCD Display - Extremely Important Information:

Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.

Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.

100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.

For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.

HSD070UDW7-C00 LCD Panel Shipping and Package :

HSD070UDW7-C00 7.0 inch Lcd Panel Monitor 800*480 LCD Screen 0

HSD070UDW7-C00 LCD Display SHIPPING :

We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .

The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )

Each order will be attached a tracking number and we will send to you.

HSD070UDW7-C00 LCD Display Warranty:

Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.

Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.

However, it is imperative to ensure that the returned product is unused and free from any man-made damages.

Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.

Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.

HSD070UDW7-C00 LCD Panel FAQ :

Q: How to make payment of HSD070UDW7-C00 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of HSD070UDW7-C00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of HSD070UDW7-C00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of HSD070UDW7-C00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
