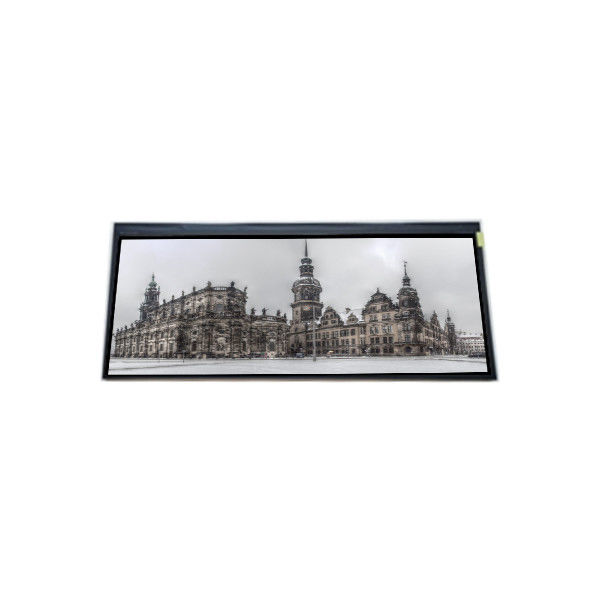

P277IVN01.0 CELL 27.7 inch LCD Panel Display 1920*240 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P277IVN01.0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P277IVN01.0 CELL | Diagonal Size: | 27.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×240 69PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 698.4(W)×87.3(H) Mm |
| Support Color: | 16.7M | Light Source: | No B/L |
| Designed For: | Digital Signage，Stretched Bar LCD | Frame Rate: | 60Hz |
Product Description
P277IVN01.0 CELL 27.7 inch LCD Panel Display 1920*240 LCD Screen
P277IVN01.0 CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | P277IVN01.0 CELL |
| Diagonal Size | 27.7" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×240 69PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 698.4(W)×87.3(H) mm |
| Bezel Opening | - |
| Outline Dim. | 711.4(W)×100.3(H)×1.4(D) mm |
| Treatment | Antiglare (Haze 28%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AMVA3, Normally Black, Transmissive |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.0% (Typ.)(with Polarizer) |
| Support Color | 16.7M |
| Light Source | No B/L |
| Weight | 237g (Typ.) |
| Designed For | Digital Signage,Stretched Bar LCD |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 6 source chips |
| Interface Type | LVDS (2 ch, 8-bit) 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
P277IVN01.0 CELL LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
P277IVN01.0 CELL LCD Panel Shipping and Package :
P277IVN01.0 CELL LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
P277IVN01.0 CELL LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
P277IVN01.0 CELL LCD Panel FAQ :
Q: Do you accept sample orders for P277IVN01.0 CELL ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of P277IVN01.0 CELL ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for P277IVN01.0 CELL ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of P277IVN01.0 CELL at a very low value ?
A: Yes , we can . pls inform us before shipping .
